Medium Intensity Solar Obstruction Light , High Chimney Aircraft Warning Lights
  • Medium Intensity Solar Obstruction Light , High Chimney Aircraft Warning Lights
  • Medium Intensity Solar Obstruction Light , High Chimney Aircraft Warning Lights
  • Medium Intensity Solar Obstruction Light , High Chimney Aircraft Warning Lights
  • Medium Intensity Solar Obstruction Light , High Chimney Aircraft Warning Lights

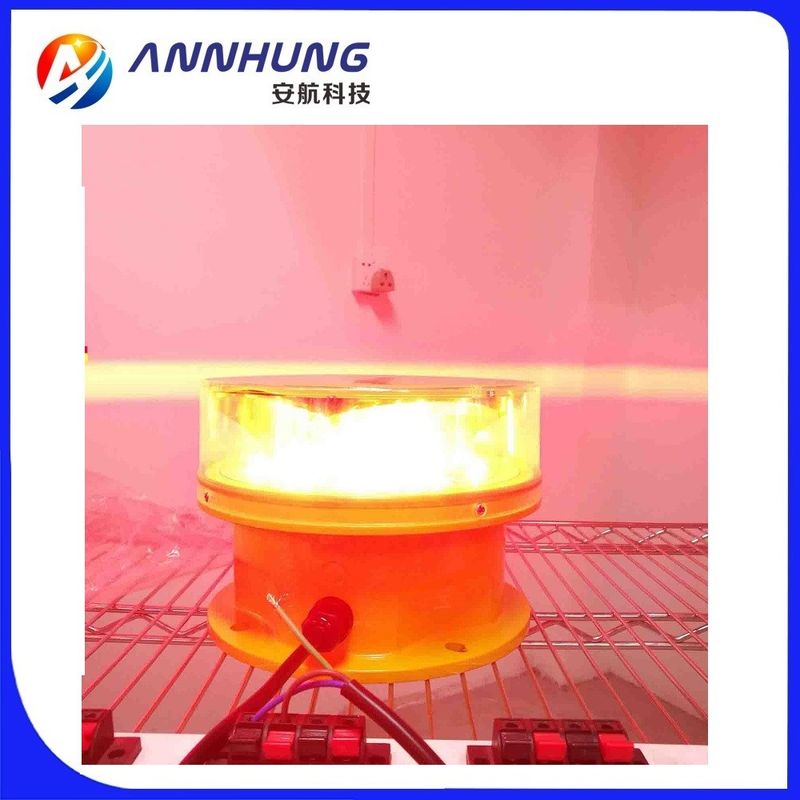

Medium Intensity Solar Obstruction Light , High Chimney Aircraft Warning Lights

Place of Origin China
Brand Name ANNHUNG
Certification CE, RoHS, ICAO, ISO9001, Patent, IP66
Model Number AH-MI-B2
Product Details
Horizontal Output(degrees):
360
Vertical Divergence(degrees):
3
Operation Mode:
Dusk-to-dawn Automatically As Standard. 24hours Operation As Option
LED Life Experience(hours):
>100,000
Operating Voltage:
DC(12V, 48VDC) Or AC(110-240VAC)
Power(W):
10
Circuit Protection:
Integrated
Lightning Surge:
IEC61000-4-5 L- N ±3kV IEC61000-4-5 L- PE ±6kV IEC61000-4-5 N- PE ±6kV
Flash Characteristics:
20-60 Flashes Per Minute(factory Setting: 20fpm)
High Light:

tower warning lights

,

airplane warning lights

Payment & Shipping Terms
Minimum Order Quantity
1
Price
100-400
Packaging Details
1PC IN 1CTN
Delivery Time
3 days
Payment Terms
L/C, T/T, Western Union, , MoneyGram
Supply Ability
1000 pieces per month
Product Description

Medium Intensity Solar Obstruction Light , High Chimney Aircraft Warning Lights



This Medium-intensity Type B L864 Aircraft safety warning light  flashing red color, designed for marking top of obstacle which height is between 45 to 105 meters.

Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance. Self-designed lens converging light to very small vertical divergence 3° make it totally compliance with ICAO standard.Better quality for customers.



Product Overview:

ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type B Obstruction Light
FAA L-864

Electrical
CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
Power supply available in DC(12-48VDC) or AC(110-240VAC). Needn't worry about installation and use.


Physical
 Unique design and UV protected polycarbonate lens for converging light
 UV protection Powder coated bright yellow color base make better visibility
 Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
 Special valve installed beside the base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be       high.


System design
Built-in photocell for day/night operation(dusk to dawn operation)
Surge and lightning protection. The light save power and use safely.


Optional
► Alarm contact for remote monitoring
► User adjustable flashing rate(20, 30, 40, 60 flashes/minute)
► GPS synchronization


Application
   AH-MI-B2 medium-intensity Aviation obstruction warning light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 45-105meter, and most time work with low intensity lights installed on the lower place. Meet your needs.



 More detailed parameter:



SPECIFICATIONS AH-MI-B2 LED Medium-intensity Type B L864 Aviation Obstruction Light
Light Characteristics
Light Source CREE high intensity LED
Available Colors Red(Other color is optional)
Intensity(cd) ≥2000cd
Horizontal Output(degrees) 360
Vertical Divergence(degrees) 3
Flash Characteristics 20-60 flashes per minute(factory setting: 20fpm)
Operation Mode Dusk-to-dawn Automatically as standard.
LED Life Experience(hours) >100,000
Electrical Characteristics
Operating Voltage DC(12V, 48VDC) or AC(110-240VAC) or others
Instantaneous power(W) 40
Average Power(W) 3W(20fpm)
Lightning surge

IEC61000-4-5 L- N ±3kV

IEC61000-4-5 L- PE ±6kV

IEC61000-4-5 N- PE ±6kV



Electrostatic IEC61000-4-2 Contact discharge 8kV
Circuit Protection Integrated
Physical Characteristics
Body Material UV protected Polycarbonate
Base Material Powder-coated Die-casting aluminum
Mounting 190×190×θ12
Dimension(mm) 229×229×168
Weight(kg)

2.5



Product Life Expectancy 5 years Plus
Environmental Factors

Ambient Temperature(℃)



-40~55
Storage temperature(℃) -55~70
Humidity 10%-95%RH(No condensation)
Wind Speed 240Km/h
Waterproof IP66
Compliance
ICAO Annex 14 Volume 1,'Aerodrome Design and
  Operations’ Seventh edition 2016, table 6.3
  Medium-intensity Type B Red Obstacle Light
FAA L-864
Options Available
  Flashing rate
  NVG(Night Vision Goggles) compatible LED
  Dry contact alarm(NO COM NC)
  GPS sync flashing
  RS485 communication
  Bird deterrent spike



Contact us:

Medium Intensity Solar Obstruction Light , High Chimney Aircraft Warning Lights 0

Produce imagine:



Medium Intensity Solar Obstruction Light , High Chimney Aircraft Warning Lights 1







Express:

Medium Intensity Solar Obstruction Light , High Chimney Aircraft Warning Lights 2

Shenzhen Anhang Technology Company Limited is a specialized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction safety warning light, and have more than 8 years manufacturing experience for clients from whole world. If you need my help, feel free to contact me.



Medium Intensity Solar Obstruction Light , High Chimney Aircraft Warning Lights

Datasheet download: download AH-MI-B2 LED Medium-intensity Type B L864...
