L810 Low Intensity Single Aviation Obstruction Light Polycarbonate Aircraft Warning Light
  • L810 Low Intensity Single Aviation Obstruction Light Polycarbonate Aircraft Warning Light
  • L810 Low Intensity Single Aviation Obstruction Light Polycarbonate Aircraft Warning Light
  • L810 Low Intensity Single Aviation Obstruction Light Polycarbonate Aircraft Warning Light
  • L810 Low Intensity Single Aviation Obstruction Light Polycarbonate Aircraft Warning Light

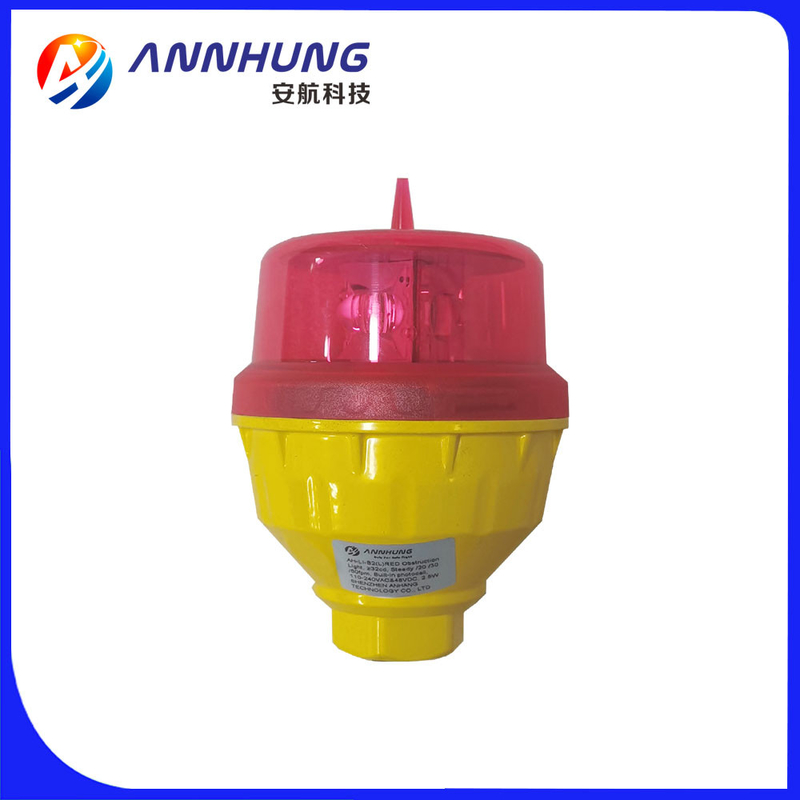

L810 Low Intensity Single Aviation Obstruction Light Polycarbonate Aircraft Warning Light

Place of Origin China
Brand Name ANNHUNG
Certification ICAO CE
Model Number AH-LI-B2
Product Details
Body Material:
Polycarbonate
Base Material:
Die-casting Aluminum
Mounting:
3/4 Inch Pipe Thread As Standard. 1inch As Option
Dimension(mm):
Φ90×130
Weight(kg):
0.3
Available Colors:
Red
High Light:

360 degree Single Aviation Obstruction Light

,

Single Aviation Obstruction Light Steady burning

,

Polycarbonate Aircraft Warning Light

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton
Delivery Time
7-15 work days
Payment Terms
T/T, Western Union, MoneyGram
Product Description
AH-LI-B2 Low-intensity L810 Single Aviation Obstruction Light

This Low-intensity light is a steady burning aviation obstruction light designed for marking top of obstacle that do not exceed 45 meters in height.

Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low
FAA L-810

Features
Electrical
3 high power CREE LED, make sure LED keep bright while use
LED power supply board includes short circuit and open circuit protection, Line surge protection by metal oxide varistor

Physical
Bird deterrent spike on top
High translucency and anti-UV polycarbonate cover could use 3-5years without yellowing
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
No screw fix type - just twist, the cover will be fixed tightly

System design
Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance is below 50cd/m2
Steady(factory setting)/20FPM/30FPM/60FPM DIP switches on PCB

Optional
Alarm contact(NO COM NC)for remote monitoring
Infrared LED for pilot using NVG
GPS sync flashing

Application
AH-LI-B2 low-intensity light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM,Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than 45m.

L810 Low Intensity Single Aviation Obstruction Light Polycarbonate Aircraft Warning Light 0

L810 Low Intensity Single Aviation Obstruction Light Polycarbonate Aircraft Warning Light 1
