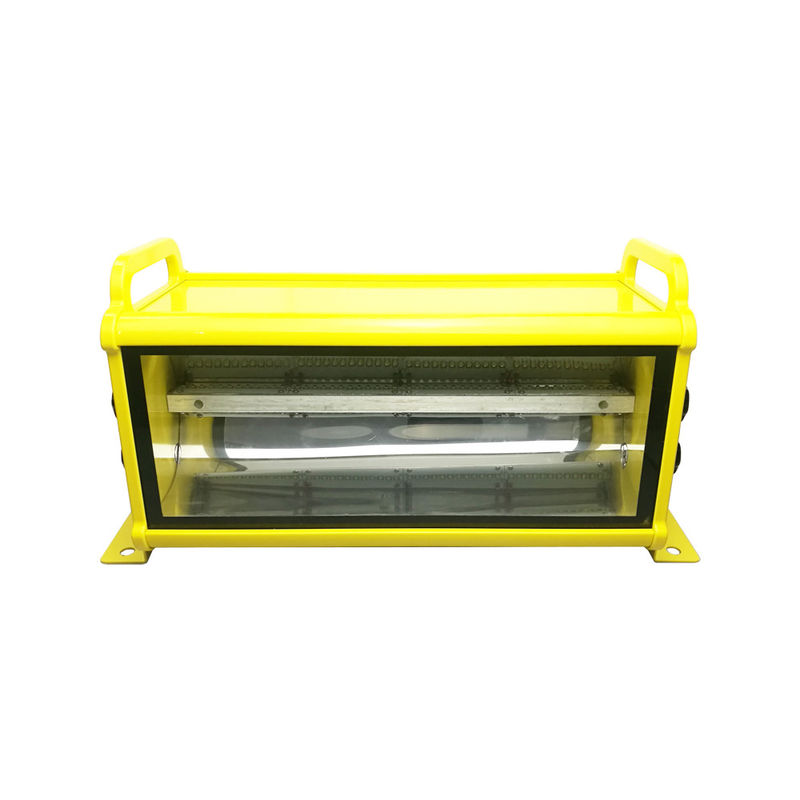

High-intensity White Flashing Obstruction Light with Long Life LED 24 Hours Working
Application
AH-HI-A0 High-intensity LED Aviation obstruction light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is more than 150meter, and most time work with low intensity lights & medium intensity
Compliance
l ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 High Intensity Type A Obstruction Light
l FAA L-856
Features
Electrical
l CREE ultra high intensity LED as light source saving power
l Power supply available in DC(48V) or AC(110V, 240V)
Physical
l Unique design and UV protected polycarbonate lens for converging light and saving LED power
l UV protection Powder coated bright yellow color base make better visibility
l Base material is powder coated die-casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
l Special valve installed beside the base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high to destroy the light
System design
l Built-in photocell for day/twilight/night operation
l Surge and lightning protection
Optional
l Alarm contact for remote monitoring
l Infrared LED for pilot using NVG
l User adjustable flashing rate(40, 50, 60 flashes/minute)
l GPS synchronization
| SPECIFICATIONS | AH-HI-A0 LED High-intensity Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | CREE high intensity LED |
| Available Colors | White |
| Intensity(cd) | ≥200,000cd(Daytime) (ICAO Type A) |
| ≥100,000cd(Daytime) (ICAO type B) | |
| 270,000cd±25%(Daytime) (FAA L-856) | |
| ≥20,000cd(Twilight) | |
| ≥2,000cd(Night) | |
| Horizontal Output(degrees) | 120 |
| Vertical Divergence(degrees) | 3-7 |
| Flash Characteristics | 40-60FPM(40fpm as factory setting) |
| Operation Mode | 24hours operation, 3 different modes |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | DC(48VDC) or AC(110, 240V) or others |
| Average Power(W) | 40W(24hours working) |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | Polycarbonate |
| Base Material | Powder coated die-casting aluminum |
| Mounting | 470×120×θ12 |
| Dimension(mm) | 510×196×245 |
| Weight(kg) | 9 |
| Product Life Expectancy | 10 years Plus |
| Environmental Factors | |
| Humidity | 0%-100% |
| Wind Speed | 80m/s |
| Waterproof | IP67 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and |
| Operations’ Seventh edition 2016, table 6.3 | |
| High-intensity Type A/B White Obstacle Light | |
| FAA | L-856, L-857 |
| Options Available | |
| NVG(Night Vision Goggles) compatible LED | |
|
GPS Sync Flashing
|
|
| Dry Contact alarm(NO COM NC) | |
| User adjustable flashing rate (40, 50, 60) |
Product datasheet download: download AH-HI-A0 LED High-intensity Aviation Obst...
