Quality Solar Aircraft Warning Light factory
Quality Solar Aircraft Warning Light factory
>

Solar Aircraft Warning Light

Brand Name: ANNHUNG
Model Number: AH-MS-B3
Place of Origin: China
Certification: ICAO, ISO9001, CE
Minimum Order Quantity: 1pc
Supply Ability: 1000pcs per month

Product Details


Color: Red Light Intensity: ≥2000cd
ICAO Standard: Medium Intensty Obstacle Light Material: Aluminum, PC
Life: 100,000hours Solar Panel: Mono Crystalline Silicon
Battery Type: VRLA FAA Regulation: L864 L885
Name: VRLA Battery Solar Aircraft Warning Light Medium Intenisty AWL 2000cd ICAO FAA L864
Highlight

VRLA Battery Aircraft Warning Light

,

Solar Aircraft Warning Light

Product Description

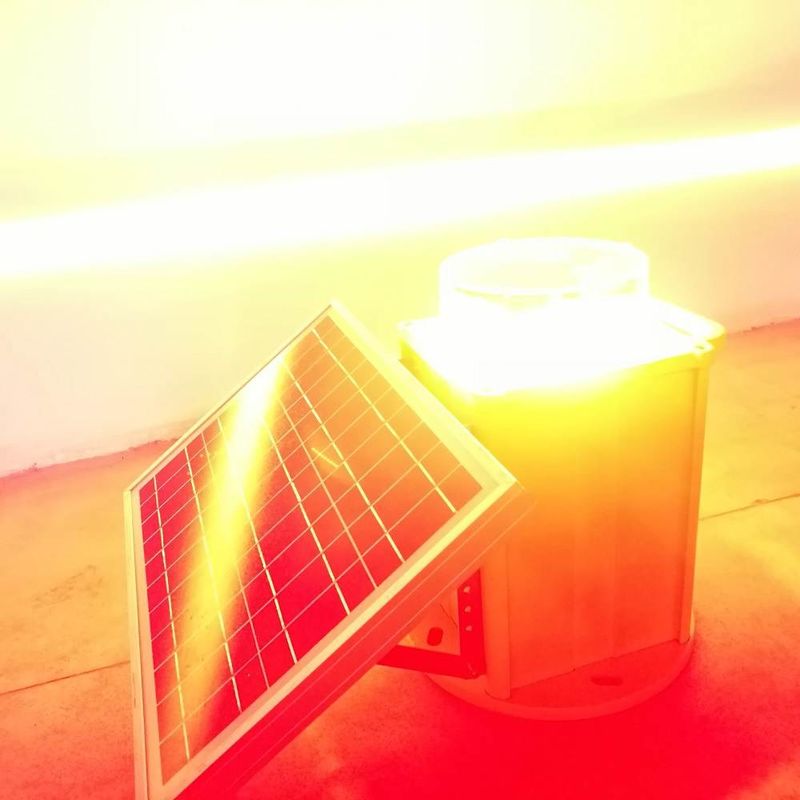

VRLA Battery Solar Aircraft Warning Light Medium Intenisty AWL 2000cd ICAO FAA L864



Application

l AH-MS-B3 solar medium-intensity aircraft warning light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection, and most time work with low intensity lights light installed on the lower place.



light video







Features

Electrical

l Ultra high intensity LED light source saving power consumption and maintenance

Physical

l UV & vibrations protected polycarbonate lens for converging light

l Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation

l Battery: VRLA battery

System design

l Solar panel as photocell for day & night working mode (dusk to dawn mode)

l ON/OFF button make local control easier

Optional

l GPS Synchronization

l Infrared LED for pilot using NVG



Solar Aircraft Warning Light



SPECIFICATIONS AH-MS-B3 LED LED Medium-intensity Type B L864 Solar Aircraft Warning Light
Light Characteristics
Light Source Ultra high intensity LED
Emitting Color Red
Intensity(cd) >2000cd(Night)
Horizontal Output(degrees) 360
Vertical Divergence(degrees) ≥3
Flash Characteristics Flashing 20FPM
Operation Mode Dusk-to-Dawn operation(Solar panel as photocell)
LED Life Experience(hours) >100,000
Electrical Characteristics
Operating Voltage(Vdc) 12
Circuit Protection Integrated
Solar Characteristics
Solar Module Type Mono crystalline Silicon
Output(watts) 20W
Charging Regulation Microprocessor controlled
Battery Characteristics
Battery type VRLA( Lithium ion battery is optional)
Nominal Voltage (V) 12V
Battery Capacity 16AH (others is optional)
Autonomy (hours) 120
Physical Characteristics
Lamb Body Material UV protected Polycarbonate
Base Material Die casting aluminum
Installation Size 200×200×M10
Overall Size (mm)

450×320×300

Weight(kg) 9
Product Life Expectancy >10years (Battery 3years)
Environmental Factors

Ambient Temperature(℃)

-55℃~+70℃

-35~80
Humidity 0~95%
Wind Speed 80m/s
Waterproof IP66
Compliance
ICAO Annex 14 Volume 1,'Aerodrome Design and
  Operations’ Seventh edition July 2016,
  Medium-intensity Type B Obstacle Light
FAA L-864
Optional


GPS Synchronization



NVG - compatible infrared (IR) LED



DATASHEE DOWNLOAD: AH-MS-B3 LED Medium-intensity Type B L864 Solar Av...



Product Highlights

VRLA Battery Solar Aircraft Warning Light Medium Intenisty AWL 2000cd ICAO FAA L864 Application l AH-MS-B3 solar medium-intensity aircraft warning light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities ...
