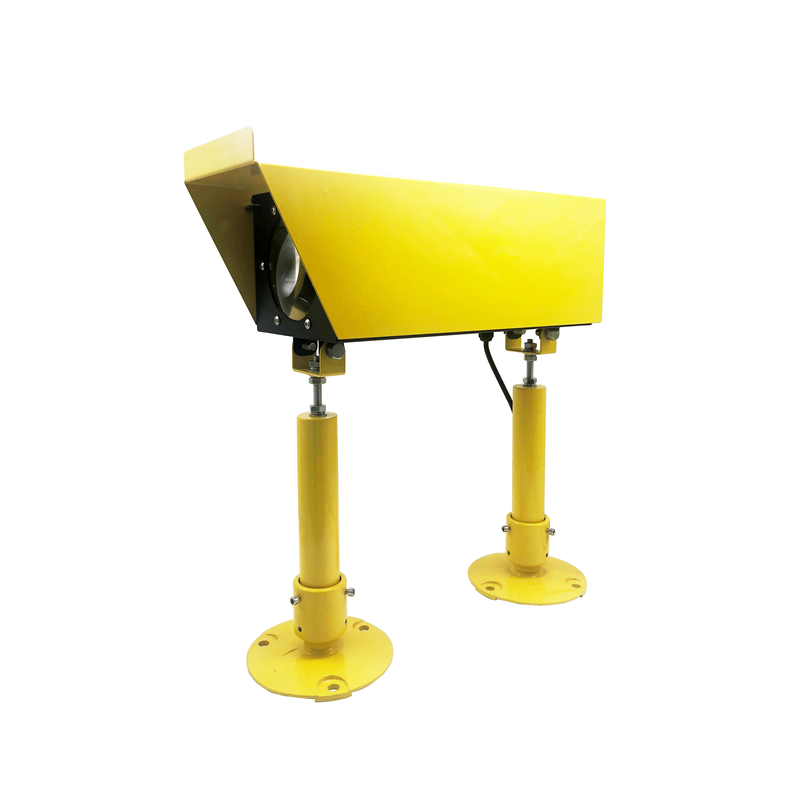

LED CHAPI 24 Hours Operation Helipad Landing Lights Steady Burning
  • LED CHAPI 24 Hours Operation Helipad Landing Lights Steady Burning

LED CHAPI 24 Hours Operation Helipad Landing Lights Steady Burning

Place of Origin China
Brand Name ANNHUNG
Certification ICAO CE
Model Number AH-HP-CHAPI
Product Details
Light Source:
LED
Available Colors:
Red/Green/White
Working Mode:
Steady Burning
Operation Mode:
24hours Operation
LED Life Experience(hours):
>100,000
Operating Voltage:
AC220V
High Light:

AC220V Helipad Landing Lights

,

LED Helicopter Landing Pad Lights

,

80m/s Helicopter Pad Lights

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton
Delivery Time
10-30 work days
Payment Terms
L/C, T/T
Product Description
AH-HP-CHAPI LED CHAPI Heliport Approach Path Indicators

The LED CHAPI Heliport Approach Path Indicators (CHAPI) uses LED technology to provide the pilot with safe and accurate glide slope on final approach to the helipad. A set of two LED CHAPI Light Housing Assemblies (LHAs) are seen by the pilot in combinations of white, green and red to indicate a path that is too high, too low or within the 6° ±0°15' glide slope.

CHAPI Visual Indication:


Compliance

ICAO Annex 14 Volume I 6th Edition dated 2013 clauses, 5.3.5.28 – 5.3.5.40, Figure A2-23 Appendix 1, 2.1.1
FAA AC 150/5390-2B Heliport Design Guide

Features
Electrical

LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light Power supply available in AC(110, 240VAC), DC48V or others

Physical

Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
UV protection Powder coated bright yellow color base make better visibility
Housing material is stainless steel which has strong corrosion resistance, Shock and Vibrations protection
Fragile coupling reduce the secondary damage to helicopters effectively

Optional

Clinometer
VHF pilot to ground remote control
Wireless Remote Control

Application

Permanent, Temporary, Emergency Helipad/Airport/Helideck
OFFSHORE/ ONSHORE USAGE


Description Parameter
Product name
HAPI Heliport  Approach Path Indicators
Body Material
Stainless steel
Leg material
Die casting aluminum
Mounting
140x M10
Dimension(mm)
455x520x184
Weight(kg)
10
Life Period
≥10years
Ambient Temperature(℃)
-35~80
Humidity 10~90%
Wind Speed 80m/s
Waterproof
IP65



LED CHAPI 24 Hours Operation Helipad Landing Lights Steady Burning 1
