60FPM GPS Sync Led Aircraft Warning Lights Medium Intensity UV Polycarbonate

Minimum Order Quantity : 1 Packaging Details : Carton
Delivery Time : 7-15work days Payment Terms : T/T, Western Union, D/P
Supply Ability : 1000pieces for one month
Place of Origin: China Brand Name: Annhung
Certification: CE, RoHS,ICAO Model Number: AH-MI/A2

Detail Information

Colors: White Intensity(cd): ≥2000cd(Night), ≥20000cd(Daytime)
Vertical Divergence(degrees): 3 Flash Characteristics: 20-60FPM - Type A (factory Setting: 20FPM)
Mounting: 190×190×θ12 Dimension(mm): 229×229×168
High Light:

GPS Sync Led Aircraft Warning Lights

,

60FPM Led Aircraft Warning Lights

,

UV Polycarbonate Airport Obstruction Light

Product Description

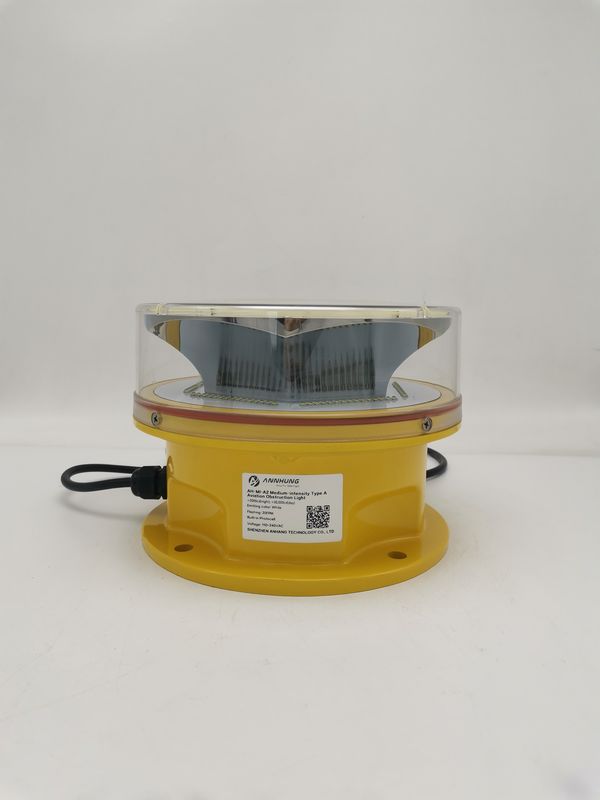

Medium-intensity LED Aviation Obstruction Light Built in photocell GPS sync


This LED Medium-intensity Aviation Obstruction Light flashing white color, designed for marking top of obstacle which height is more than 105meters.

Compliance

ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type A Obstruction Light
FAA L-865
CAAC MH6012-2015 Aviation obstruction light, MH 5001—2013 Aerodrome technical standards

Features

Electrical

CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
Power supply available in DC(12V, 24V, 48V) or AC(110-240VAC) Physical
Unique design and UV protected polycarbonate reflector for converging light
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection

System design

Built-in photocell for day/night operation(dusk to dawn operation)
Surge and lightning protection
GPS devide inside for flashing synchronously

Optional

Dry contact Alarm output for remote monitoring
Infrared LED for pilot using NVG
IOT Monitoring

Application

AH-MI-A2 medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 105-150meter, and most time work with low /medium intensity lights installed on the lower place.

DescriptionParameter
Light Source
CREE high intensity LED
Horizontal Output(degrees)
360
LED Life Experience(hours)
>100,000
Operating Voltage
DC(12V, 48VDC) or AC(110-240VAC) or others
Instantaneous power(W)
600
Average Power(W)
≤13W(20fpm)
Circuit Protection
Integrated
Body Material
UV protected Polycarbonate
Base Material
Powder-coated Die-casting aluminum
Weight(kg)
3.5
Humidity
10%-95%RH(No condensation)
Wind Speed
240Km/h
Waterproof
IP66
FAA
L-865




Company Information


Anhang Technology (HK) Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc.
All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). We are proud to have served customers from all across the world.
