300Lux SUS304 Low Intensity Obstruction Light 32.5cd Solar Powered

Minimum Order Quantity : 1 Packaging Details : Carton
Delivery Time : 7-15work days Payment Terms : T/T, Western Union, D/P
Place of Origin: China Brand Name: Annhung
Certification: CE, RoHS,ICAO Model Number: AH-LS-A1

Detail Information

Light Source: 3 High Intensity CREE LED Photocell Sensitity: 50-300Lux
Autonomy (hours): Steady: ≥90, Flashing: ≥180 Installation Size: 3/4inch Thread Hole(standard)
Overall Size (mm): 268×243×300 Weight(kg): 3
High Light:

300Lux Low intensity Obstruction Light

,

SUS304 Low intensity Obstruction Light

,

32.5cd Solar Powered Aviation Lights

Product Description

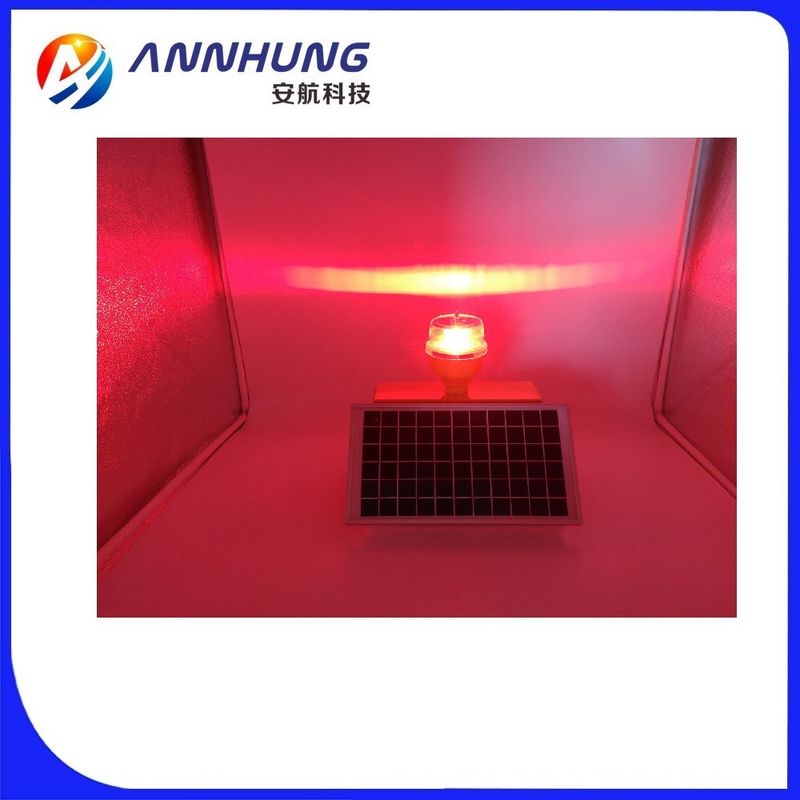

Low-intensity Solar Powered Aviation Obstruction Light System



AH-LS-A1 is a self-contained obstruction light which consist of solar panel, battery and lamp. There is no need for external power input. The vertical degree of the solar panel is adjustable to ensure it could get the most sunlight in different area.

Compliance

ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6-1, 6-2 Low Intensity Type A / B /E Obstruction Light
FAA L-810

Features

Electrical

3 high power CREE LED, make sure LED keep bright while use

Physical

With bird needle to prevent bird drop
Powder coated die casting aluminum base, light fastness, resist snow and rain
Battery box made of corrosion resistant 304 stainless steel
Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation
Solar panel vertical degree is adjustable

System design

Solar panel as sensor(Photo diode) for day & night working mode (dusk to dawn mode)
ON/OFF button under base make local control easy
Steady/Flashing(20fpm) adjustable switch available
Solar panel angel is adjustable
Surge and lightning protection

Optional

Infrared LED for pilot using NVG(Night Vision Goggles)
Stainless steel needle strips for solar panel

Application

AH-LS-A1 solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.
Used alone on the top of obstacle which height is less than 45meter

Description Parameter
Light Source
3 High intensity CREE LED
Emitting Color
Red
Intensity(cd)
>32.5cd
Horizontal Output(degrees)
360
Vertical Divergence(degrees)
10
Flash Characteristics
Steady/Flashing(20fpm) adjustable
Operation Mode
Dusk-to-Dawn operation
LED Life Experience(hours)
>100,000
Battery type
Lithium ion battery
Lamb Body Material
UV protected Polycarbonate
Base Material
Powder coated stainless steel 304
Humidity
0~90%
Wind Speed
80m/s
Waterproof
IP65







Company Information



Anhang Technology (HK) Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc.



All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). We are proud to have served customers from all across the world.
