Blue Red Solar Airport Lighting / Lift- Off Area Portable Runway Lights
Advantage
1.International advanced solar panel reaching more than 10 years service life.
2. Easy installation and relocation: no specialized work crew required, limited air traffic disruption, and lights are immediately operational .
3. Comprehensive protection in voltage short circuit, over-voltage, floating charge and over temperature.
4. Built-in Solar Panel.
5. Self-contained and low maintenance: all components are incorporated within a compact, stand-alone unit.
6. More than 5 days autonomy.
7. Recyclable batteries with the lightest environmental.
Function
1.Optional wireless ON/OFF control provides on-demand operation from up to 3km away. Antenna is inside light base.
2.Push button interface for local ON/OFF control. Toggle switch interface for steady-burning/flashing working mode.
3.Optional Battery Charge port: 100~240VAC
4. Optional NVG-compatible infrared (IR) LEDs
Application
Emergency operations, Helipads, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting – (ICAO Annex 14), Portable or expedited airfield lighting, Threshold lighting and obstruction lighting
Main parameter
| 1.Mode: |
AH-LA/ C |
| 2.Light intensity: |
≥32cd |
| 3.Working mode: |
Steady-burning mode or Flash mode |
| 4.Light source: |
LED,100,000hours service life |
| 5.Solar panel: |
monocrystalline silicon |
| 6. Material: |
-Housing: Polycarbonate
-Base: die casting aluminum |
| 7.Autonomy(without sunlight): |
at least 5 days(Option 20days) |
| 8.Battery: |
lithium ion battery, 3. 7V 10AH |
| 9.Overall Size(mm): |
Φ220 by 233 |
| 10.Installation Size(mm): |
Φ190 by M10 |
| 11.Net Weight: |
2Kg |
| 12.Emitting Color: |
Red, green, white, yellow/ white,yellow/ white, yellow/ white, red/ white( Customized) |
| 13.Ambient Temperature: |
-40℃~+60℃ |
| 14.Wind load: |
80m/s |
| 15. Protection Standard: |
IP68 |
| 16. Optional: |
charging port,remote control,NVGcompatible infrared (IR) LEDs |
Dimension Drawing

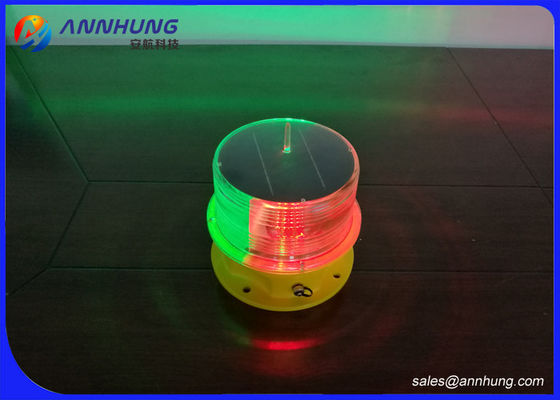

Product Picture
