Aircraft Warning Light
>
|
|
| Place of Origin | Shenzhen, China |
| Brand Name | Annhung |
| Certification | CE, ICAO |
| Model Number | AH-LS/L |
Solar Powered Aircraft Warning Light On Towers Vibrations And UV Protection
AH-LS/L Low-intensity Solar-Powered Aviation Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.
1.International advanced solar panel reaching at least 10 years service life.
2. Comprehensive protection in voltage short, over-voltage, floating charge and temperature.
3.Built-in Solar Panel.
4. Strong corrosion resistance, Rain and Snow, Shock and Vibrations protection and UV protection.
Product Application
-Civil Airports
-Helipads
-Communication Towers
-Factory
-Power Plant Chimneys
-Television Tower
-Port, Bridges
-High-rise buildings
-uoyage in sea, etc.
Packaging & Delivery
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Product Descripton
| Description | Parameter |
|---|---|
| Working mode | Steady-burning mode or Flash mode(20-60times/minute) |
| Supply voltage | DC3.2V(Solar powered Way),recyclable batteries with the lightest environmental and long life. |
| Light source | LED |
| LED lifetime | ≥100,000h |
| Power | 1W |
| Intensity | ≥10cd(Steady-burning mode),:≥32.5cd(Flash mode) |
| Operating temperature | -40C ~ +60C |
| Standard | ICAO (Aerodromes Annex 14) Low-intensity Type A or Type B,FAA L-810 |
| IP rating | IP65 |
| Mass | 1.0kg |
| LED color | aviation red |
| Material | Base:Die casting aluminum, housing: PC |
Dimension Drawing

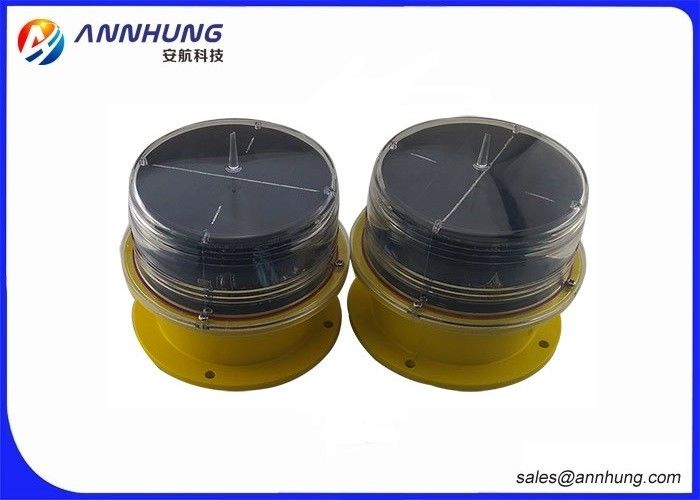

Product Picture
