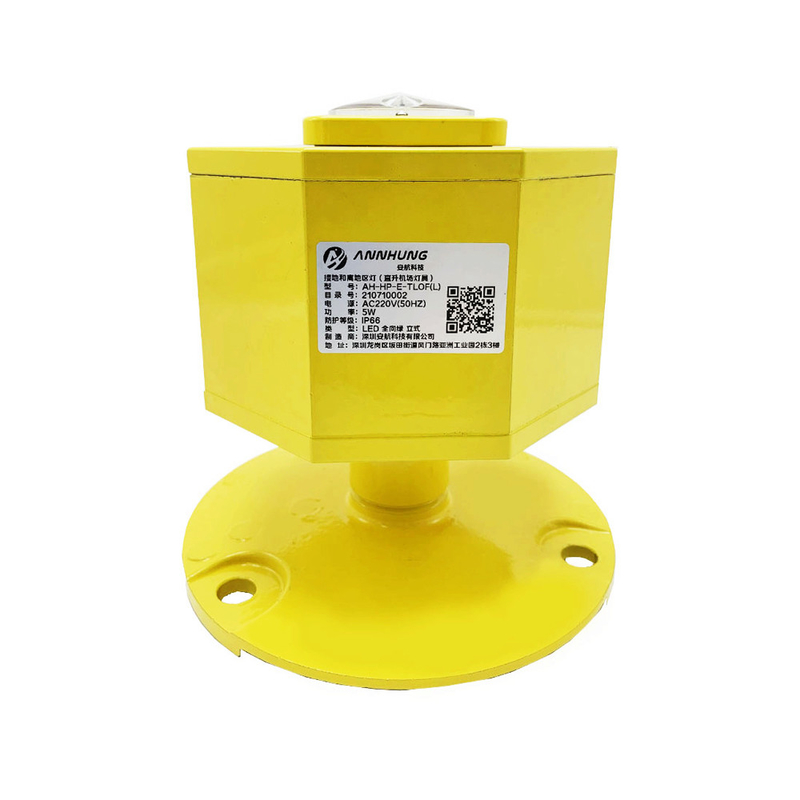

AH-HP-E Serial LED Heliport-Helideck Elevated Light
AH-HP-E Serial Heliport Elevated lights should not exceed a height of 25cm for Surface-level and Elevated heliports, not exceed a height of 15 cm for helideck. There is a fragile coupling in the base connection for heliport so if aircraft hit the light by accident, the base will break immediately to avoid more damage.
The lights could be used as FATO light, TLOF lights, Taxiway lights.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.
FAA AC 150/5390-2B Heliport Design Guide
CAP 437
Features
Electrical
High-intensity CREE LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110-240VAC) and DC48V, DC12V and other voltage is optional
LED power supply board includes short circuit and open circuit protection
Physical
Unique designed Glass lens for converging light
Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Optional
Infrared LED for pilot using NVG(Night Vision Goggles)
Controller for power supplying and turn ON/OFF light
VHF pilot to ground remote control
Light intensity adjustable
Application
Surface-level and Elevated heliports
HelideckShipboard heliports
| Description | Parameter |
|
Operating Voltage |
DC(12V, 24V, 36V, 48V) or AC(110-240VAC) |
|
Power(W) |
5 |
|
Circuit Protection |
Integrated |
|
Body Material |
UV protected Polycarbonate |
|
Base Material |
Powder-coated Die-casting aluminum |
|
Mounting |
140×140×θ12 |
|
Dimension(mm) |
190×165×166 |
|
Weight(kg) |
1.9 |
|
Product Life Expectancy |
≥10 years |
|
Ambient Temperature(℃) |
-55~70 |
|
Humidity |
-10~90 |
|
Wind Speed |
80m/s |
|
Waterproof |
IP66 |
|
ICAO |
ICAO Annex 14 Volume ǁ Heliports 5.3 |
