| Place of Origin | China |
| Brand Name | ANNHUNG |
| Certification | ICAO CE |
| Model Number | AH-HP-I-TLOF(L) |

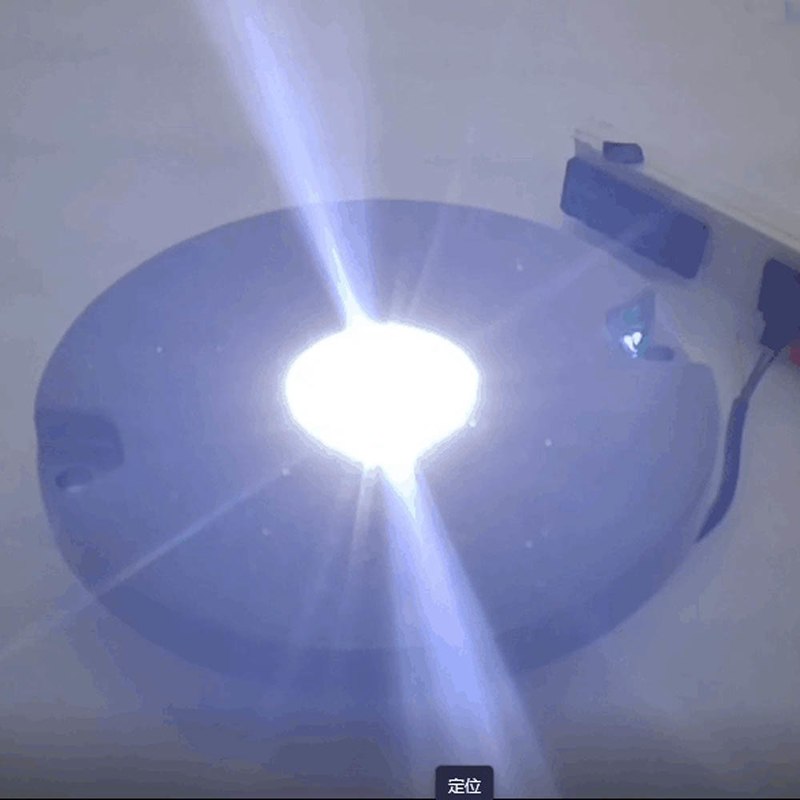

AH-HP-I-TLOF(L) LED Heliport Touchdown and Lift-off Area Lighting
Heliport Inset light is always be installed at locations where the lights are frequently knocked down by aircraft or maintenance vehicles.
A TLOF lighting system shall be provided at a heliport intended for use at night. TLOF perimeter lights shall be placed along the edge of the area designated for use as the TLOF or within a distance of 1.5 m from the edge.
The TLOF perimeter lights shall be fixed omnidirectional lights showing green.
8inch International standard mounting for aerodrome inset light.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.9
FAA AC 150/5390-2B Heliport Design Guide
CAAC MH 5001—2013 Aerodrome technical standards
CAAC MH 5013—2014 Technical Standards of Civil Heliports
Features
Electrical
Ultra high intensity CREE LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110-240VAC), DC48V
Physical
Pressure resistance lens allowed the vehicles go through on light
Die-casting aluminum covered by color powder coasted which have good corrosion protection and load bearing.
IP68 waterproof ensure light work fine underground
Optional
Infrared LED for pilot using NVG(Night Vision Goggles)
Controller for power supplying and turn ON/OFF light
VHF pilot to ground remote control
Light intensity adjustable
Application
Surface-level heliport
Elevated heliport or helideck
| Description | Parameter |
|
Operating Voltage |
DC(12V, 24V, 36V, 48V) or AC(110-240VAC) |
|
Power(W) |
5 |
|
Circuit Protection |
Integrated |
|
Body Material |
Die-casting aluminum |
|
Mounting |
Θ225×145-M10*2 |
|
Dimension(mm) |
Θ220×133.47 |
|
Weight(kg) |
4 |
|
Product Life Expectancy |
≥10 years |
|
Ambient Temperature(℃) |
-55~70 |
|
Humidity |
-0~100 |
|
Wind Speed |
80m/s |
|
Waterproof |
IP68 |
|
ICAO |
ICAO Annex 14 Volume ǁ Heliports 5.3.9 |
