Helipad Landing Lights
>
|
| Place of Origin | China |
| Brand Name | ANNHUNG |
| Certification | ICAO CE |
| Model Number | AH-HP-I-TLOF |

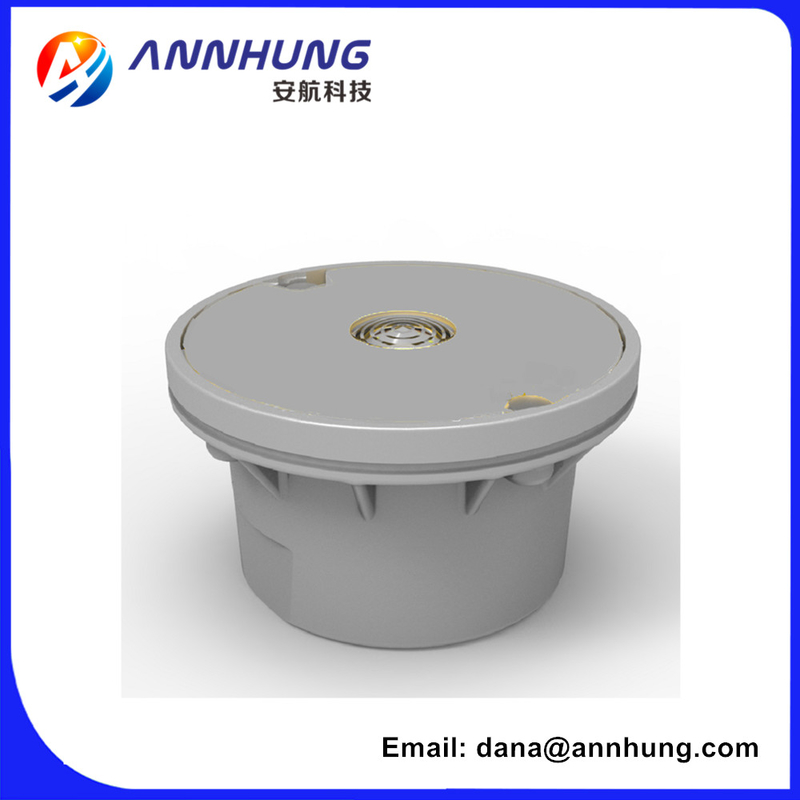

Touchdown and lift-off area lighting Heliport Inset Light
Heliport Inset light is always be installed at locations where the lights are frequently knocked down by aircraft or maintenance vehicles.
8inch International standard mounting for aerodrome inset light.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.
FAA AC 150/5390-2B Heliport Design Guide
Features
Electrical
Ultra high intensity CREE LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Physical
Pressure resistance lens allowed the vehicles go through on light
Die-casting aluminum covered by color powder coasted which have good corrosion protection and load bearing.
Optional
Infrared LED for pilot using NVG(Night Vision Goggles)
Controller for power supplying and turn ON/OFF light
Application
Heliport FATO ares
Helipad Runway
Helipad taxiway
Aiming point light
| Description | Parameter |
|
Operation Mode |
24hours operation |
| LED Life Experience(hours) |
>100,000 |
|
Operating Voltage |
110-240VAC, 48VDC, 24VDC or others |
|
Power(W) |
≤7.5W |
|
Body Material |
Die-casting aluminum |
|
Overall size(mm) |
Θ220×133.47 |
|
Installation size(mm) |
Θ225×145-M10*2 |
|
Ambient Temperature(℃) |
-55~70 |
|
Humidity |
0~100% |
|
Weight(kg) |
4 |
|
Product Life Expectancy |
≥10 years |
Company Information
Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent.
Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.
