LED Marine Lantern
>
|
|
| Place of Origin | China |
| Brand Name | ANNHUNG |
| Certification | ICAO CE |
| Model Number | AH-LS-C1 |

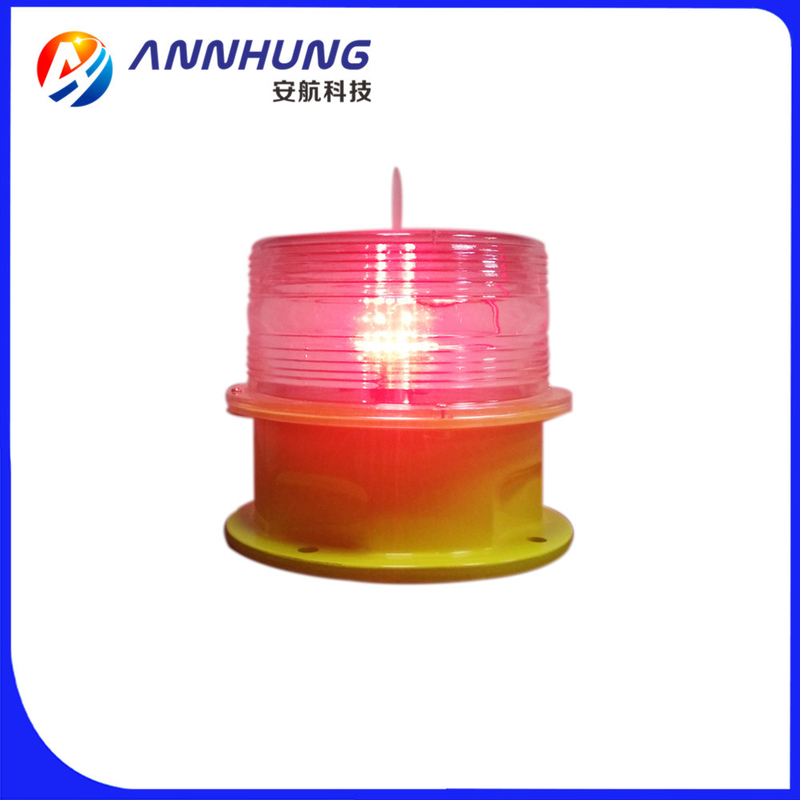

AH-LS-C1 LED Solar Powered Marine Lanterns
This LED Marine Lanterns is completely self-contained lantern, adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply.
Optional function: The user could change the light flashing characteristics (IALA 366 flashes) easily by IR programmer.
Compliance
IALA E-200-1
Features
Electrical
Based on LED technology, and its color complies to IALA Recommendations E-200-1.
LED technology reduces maintenance time & costs
Physical
Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
PC housing,UV resistance, shockproof and corrosion proof.
Bird deterrent spike
Powder coated die casting aluminum base
Built-in monocrystalline silicon solar panel, conversion efficiency is better than polycrystalline silicon
System design
Built-in photocell for day/night operation(dusk to dawn operation)
ON/OFF button interface located under base
Optional
External battery charger
GPS sync flashing
366 IALA flash characteristics adjustable
Infrared Programmer for flashing rate setting
Application
AH-LS-C1 Solar Marine Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation.
| Description | Parameter |
| Light Source | LED |
| Flash Characteristics |
FL3S(0.2,2.8) (others are optional) |
| Operation Mode |
Dusk-to-dawn Automatically (Built-in photocell) |
| LED Life Experience(hours) | >100,000 |
| Solar Module Type | Mono crystalline Silicon |
| Output(watts) | 3W |
| Battery type | Lithium ion battery |
|
Nominal Voltage (V) |
3.7V |
|
Battery Capacity (Ah) |
Depends on different visible range |
|
Charging Regulation |
Microprocessor controlled |
| Humidity | 10%-95%RH(No condensation) |
| Wind Speed |
0~100% |
| Waterproof | IP68 |
|
IALA |
Signal colors compliance to IALA E-200-1 |
Company Information
Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent.
Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.
