CAP 437 Solar Airport Lighting Wireless Remote Controlled UV Resistance IP67
  • CAP 437 Solar Airport Lighting Wireless Remote Controlled UV Resistance IP67

CAP 437 Solar Airport Lighting Wireless Remote Controlled UV Resistance IP67

Place of Origin China
Brand Name ANNHUNG
Certification ICAO CE
Model Number AH-SA-S2
Product Details
Available Colors:
Red/Green, Red, Green
Flash Characteristics:
Steady
Operation Mode:
Wireless Remote Controlled
LED Life Experience(hours):
>100,000
Installation Size:
140×140×M10
Overall Size (mm):
560×500×514
High Light:

CAP 437 Solar Airport Lighting

,

UV Resistance Solar Airport Lighting

,

IP67 Wireless Heliport Light

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton
Delivery Time
15-30 work days
Payment Terms
T/T, Western Union
Product Description

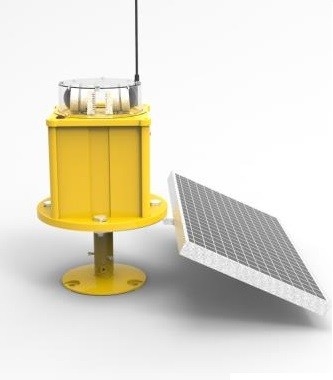

AH-SA-S2 LED Solar Powered Runway Threshold End Light

AH-SA-S2 use bidirectional optics; designed for permanent usage at Non-Precision Runways located in regions without access to electricity and high photovoltaic potential.

Solar power system is equipped for operating 365 days on solar energy.

Compliance

ICAO Annex 14 Vol. I (7th. Edition, July 2016)
CAP 437

Features

Electrical

LED as light source saving power consumption and maintenance,95% less power than equivalent incandescent light

Physical

Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP67).
PC housing, UV resistance, shockproof and corrosion proof.
Powder coated die casting aluminum base
Frangible coupling base avoid secondary damage

System design

ON/OFF button interface
Wireless remote control by AH-HP-RC

Optional

charging port and extra battery charger from 110-240vac power supply
NVG - compatible infrared (IR) LED

Application

Airport, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting, Portable or expedited airfield lighting, Threshold lighting, Runway end light
Helipad taxiway
Emergency operations
Airport/Airdrome

Description Parameter
Light Source LED
Available Colors
Red/Green, Red, Green
Flash Characteristics
Steady
LED Life Experience(hours) >100,000
Operation Mode
Wireless remote controlled
Operating Voltage
24V or 12V or 7.4V
Lamb Body Material
Aluminum Alloy, PC
Base Material
Powder-coated Die-casting aluminum
Product Life Expectancy ≥10 years
Storage temperature(℃)
-55~70
Humidity
0~100%
Wind Speed 80m/s
Waterproof IP67
ICAO ICAO Annex 14



CAP 437 Solar Airport Lighting Wireless Remote Controlled UV Resistance IP67 0



Company Information


Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent.


Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.
