ICAO Solar Heliport Beacon Lights Morse Code Shockproof DC12V Polycarbonate
  • ICAO Solar Heliport Beacon Lights Morse Code Shockproof DC12V Polycarbonate
  • ICAO Solar Heliport Beacon Lights Morse Code Shockproof DC12V Polycarbonate

ICAO Solar Heliport Beacon Lights Morse Code Shockproof DC12V Polycarbonate

Place of Origin China
Brand Name ANNHUNG
Certification ICAO CE
Model Number AH-SA-HB
Product Details
Name:
Solar Heliport Beacon
Horizontal Output(degrees):
360
Vertical Divergence(degrees):
≥8
Mounting:
200×200×12
Dimension(mm):
250×250×250
Weight(kg):
4.5
High Light:

ICAO Solar Heliport Beacon Lights

,

Shockproof Solar Heliport Beacon Lights

,

DC12V Polycarbonate Helipad Obstruction Light

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton
Delivery Time
7-15 work days
Payment Terms
T/T, Western Union
Product Description

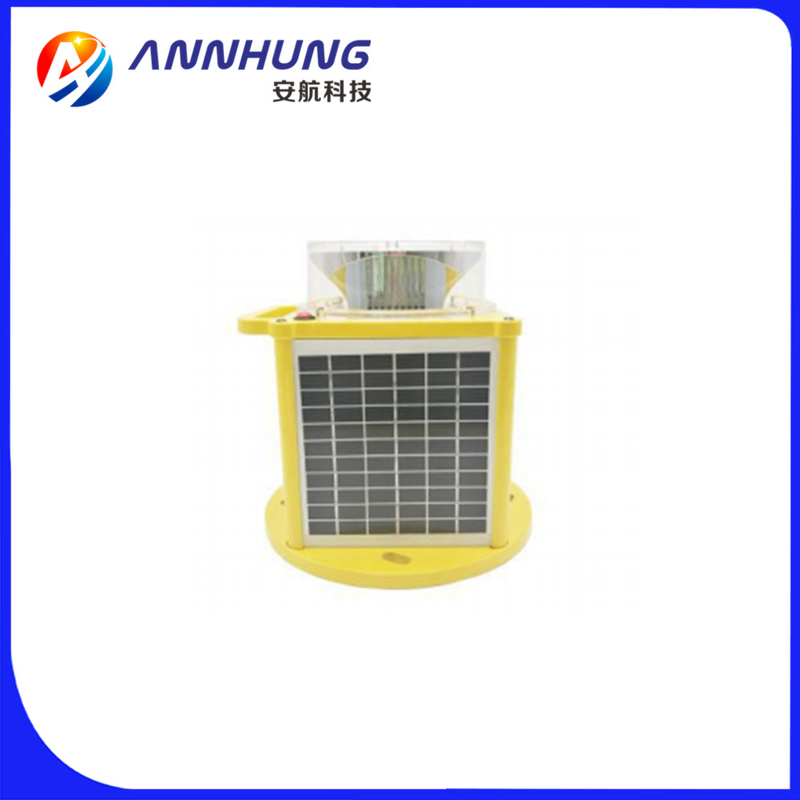

AH-SA-HB LED Solar Heliport Beacon

A heliport beacon should be provided at a heliport where long-range visual guidance is considered necessary and is not provided by other visual means; or identification of the heliport is difficult due to surrounding lights.

AH-SA-HB flashes white color 4 times/0.8second and stop for 1.2s, then start new circle for 2seconds(0.8s+1.2s ), built-in solar panel and battery, no wiring job is needed.

ICAO Solar Heliport Beacon Lights Morse Code Shockproof DC12V Polycarbonate 0

Compliance

ICAO Annex 14 Volume ǁ Heliports 5.3.2
FAA AC 150/5390-2B Heliport Design Guide
CAP 437

Features

Electrical

LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light

Physical

Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
PC housing,UV resistance, shockproof and corrosion proof.
UV protection Powder coated bright yellow color base make better visibility
Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
ON/OFF button interface for easy local control

Optional

External charger
Wireless remote control
Carry case for batch of lights
NVG - compatible infrared (IR) LED
Installation bracket

Application

Helipad/Heliport/Helideck/Airport

Description Parameter
Light Source LED
Available Colors White
Flash Characteristics
Morse code “H
LED Life Experience(hours) >100,000
Operation Mode 24hours working
Operating Voltage
DC12V
Body Material
UV protected Polycarbonate
Base Material
Powder-coated Die-casting aluminum
Product Life Expectancy ≥10 years
Storage temperature(℃)
-35~80
Humidity
10~90%
Wind Speed
80m/s
Waterproof IP68
ICAO
ICAO Annex 14 Volume ǁ Heliports 5.3.2



ICAO Solar Heliport Beacon Lights Morse Code Shockproof DC12V Polycarbonate 1
