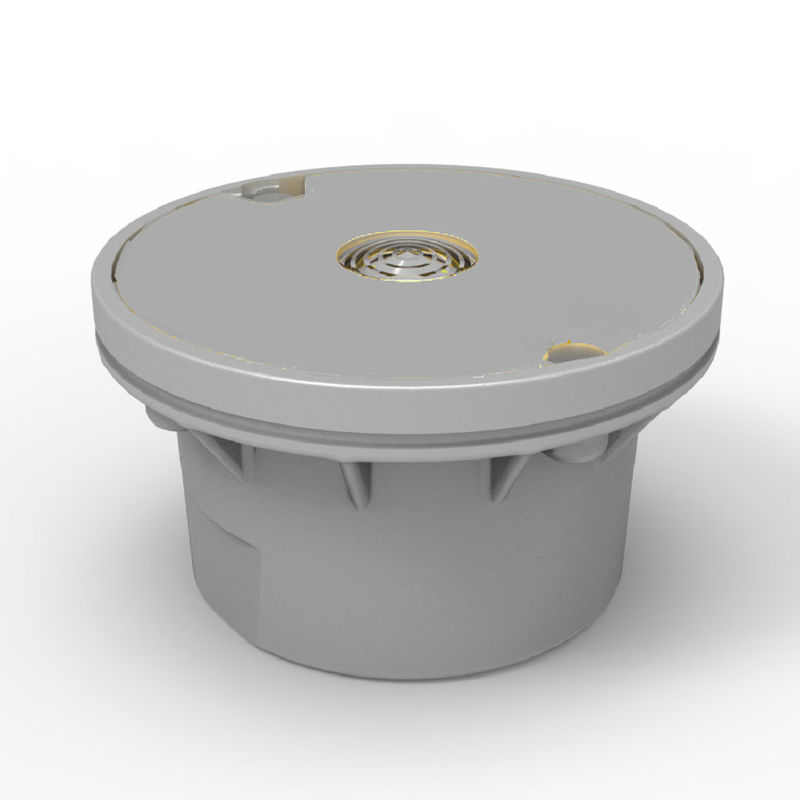

7.5W FATO Helipad Runway Lights Taxiway Aiming Point Light
  • 7.5W FATO Helipad Runway Lights Taxiway Aiming Point Light
  • 7.5W FATO Helipad Runway Lights Taxiway Aiming Point Light

7.5W FATO Helipad Runway Lights Taxiway Aiming Point Light

Place of Origin China
Brand Name ANNHUNG
Certification ICAO CE
Model Number AH-HP-I
Product Details
Name:
Serial LED Heliport Inset Light
Horizontal Degree(°):
Omnidirection (360°)
Vertical Degree(°):
ICAO Specification
Operating Voltage:
110-240VAC, 48VDC, 24VDC Or Others
Overall Size(mm):
Θ220×133.47
Installation Size(mm):
Θ225×145-M10*2
Weight(kg):
4
Waterproof:
IP68
High Light:

FATO Helipad Runway Lights

,

7.5W Helipad Runway Lights

,

Helipad Taxiway Aiming Point Light

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton
Delivery Time
7-15 work days
Payment Terms
T/T, Western Union
Product Description
AH-HP-I Serial LED Heliport Inset Light

It could be used as Aiming point light, perimeter light of FATO(Final approach and take-off areas), TLOF (Touchdown and lift-off areas), taxiway, Flight path alignment guidance lighting, etc. The emitting color is green or yellow or white or blue.

Compliance

ICAO Annex 14 Volume ǁ Heliports 5.3.
FAA AC 150/5390-2B Heliport Design Guide
CAAC MH 5013—2014 Technical Standards of Civil Heliports

Features

Electrical

Ultra high intensity CREE LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110-240VAC), DC48V

Physical

Pressure resistance lens allowed the vehicles go through on light
IP68 waterproof ensure light work fine underground

Optional

Infrared LED for pilot using NVG(Night Vision Goggles)
VHF pilot to ground remote control
Light intensity adjustable

Application

Helipad/Heliport TLOF areas
Heliport FATO ares
Aiming point light

Description Parameter
Light Source LED
Available Colors
Green, White, Yellow, Blue, Red
Flash Characteristics Steady
LED Life Experience(hours) >100,000
Operation Mode 24hours working
Intensity(cd)
ICAO standard, refer to Photometric table
Body Material
Die-casting aluminum
Weight(kg) 4
Product Life Expectancy ≥10 years
Storage temperature(℃) -55~70
Humidity 0~100%
Power(W)
≤7.5W
Waterproof IP67
ICAO Annex 14 Volume ǁ Heliports 5.3
