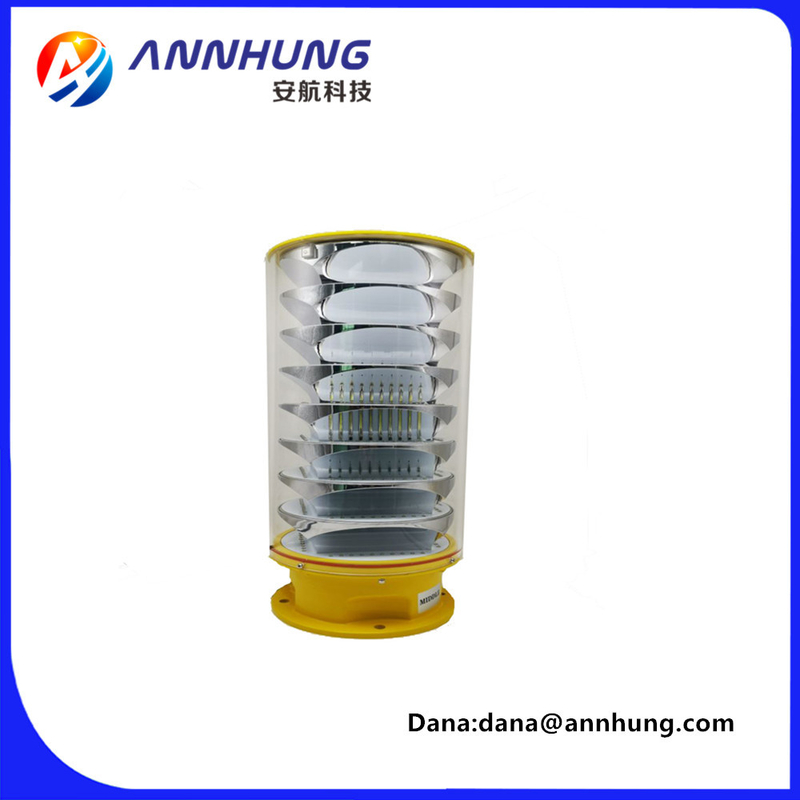

IP67 ICAO Aviation Obstruction Light UV Lens FAA L856 Tower Warning Light
  • IP67 ICAO Aviation Obstruction Light UV Lens FAA L856 Tower Warning Light
  • IP67 ICAO Aviation Obstruction Light UV Lens FAA L856 Tower Warning Light

IP67 ICAO Aviation Obstruction Light UV Lens FAA L856 Tower Warning Light

Place of Origin China
Brand Name ANNHUNG
Certification ICAO CE
Model Number AH-HI-A2
Product Details
Available Colors:
White
Intensity(cd):
≥200,000cd(Daytime) ≥20,000c((Twilight) ≥2,000cd(Night)
Vertical Divergence(degrees):
4
Horizontal Output(degrees):
360
Mounting:
θ190×θ12
Dimension(mm):
236×236×545
Weight(kg):
7.5
Waterproof:
IP67
High Light:

IP67 ICAO Aviation Obstruction Light

,

UV Lens Aviation Obstruction Light

,

FAA L856 Tower Warning Light

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton
Delivery Time
15-30 work days
Payment Terms
T/T, Western Union
Supply Ability
1000Pieces for one month
Product Description
AH-HI-A2 LED High-intensity Type A L856 Aviation Obstruction Light

This LED High-intensity Type A Aviation Obstruction Light flashing white color 24 hours and designed for marking top of obstacle that exceed 150 meters in height.

Compliance

ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 High Intensity Type A Obstruction Light
FAA L-856

Features

Electrical

CREE ultra high intensity LED as light source saving power
Power supply available in DC(48V) or AC(110V-240V)

Physical

Unique design and UV protected polycarbonate lens for converging light and saving LED power
UV protection Powder coated bright yellow color base make better visibility
Base material is powder coated die-casting aluminum which has strong corrosion resistance, Shock and Vibrations protection

System design

Built-in photocell for day/twilight/night operation
Surge and lightning protection

Optional

Alarm contact for remote monitoring
User adjustable flashing rate(40, 50, 60 flashes/minute)
GPS synchronization

Application

AH-HI-A2 High-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM,
Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is more than 150meter, and most time work with low intensity lights & medium intensity light installed on the lower
place.

Description Parameter
Light Source LED
Flash Characteristics
40-60 flashes per minute
Operation Mode
24hours operation, 3 different modes
LED Life Experience(hours) >100,000
Operating Voltage DC(12V, 48VDC) or AC(110-240VAC) or others
Body Material Polycarbonate
Base Material
Powder coated die-casting aluminum
Weight(kg) 7.5
Mounting
θ190×θ12
Dimension(mm)
236×236×545
Humidity
0%-100%
Wind Speed
80m/s
Waterproof IP67
FAA
L-856







Company Information


Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent.


Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.
