IP66 Waterproof Aircraft Warning Light Polycarbonate Lens ICAO 2000cd
  • IP66 Waterproof Aircraft Warning Light Polycarbonate Lens ICAO 2000cd
  • IP66 Waterproof Aircraft Warning Light Polycarbonate Lens ICAO 2000cd

IP66 Waterproof Aircraft Warning Light Polycarbonate Lens ICAO 2000cd

Place of Origin China
Brand Name ANNHUNG
Certification ICAO CE
Model Number AH-MI-D1
Product Details
Light Source:
LED
Available Colors:
Red
Intensity(cd):
≥2000cd
Mounting:
190×190×θ12
Dimension(mm):
236×236×215
Weight(kg):
4
Waterproof:
IP66
High Light:

IP66 Waterproof Aircraft Warning Light

,

Polycarbonate Lens Aircraft Warning Light

,

2000cd Double Aviation Obstruction Light

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton
Delivery Time
7-15 work days
Payment Terms
T/T, Western Union
Supply Ability
2000Pieces for one month
Product Description

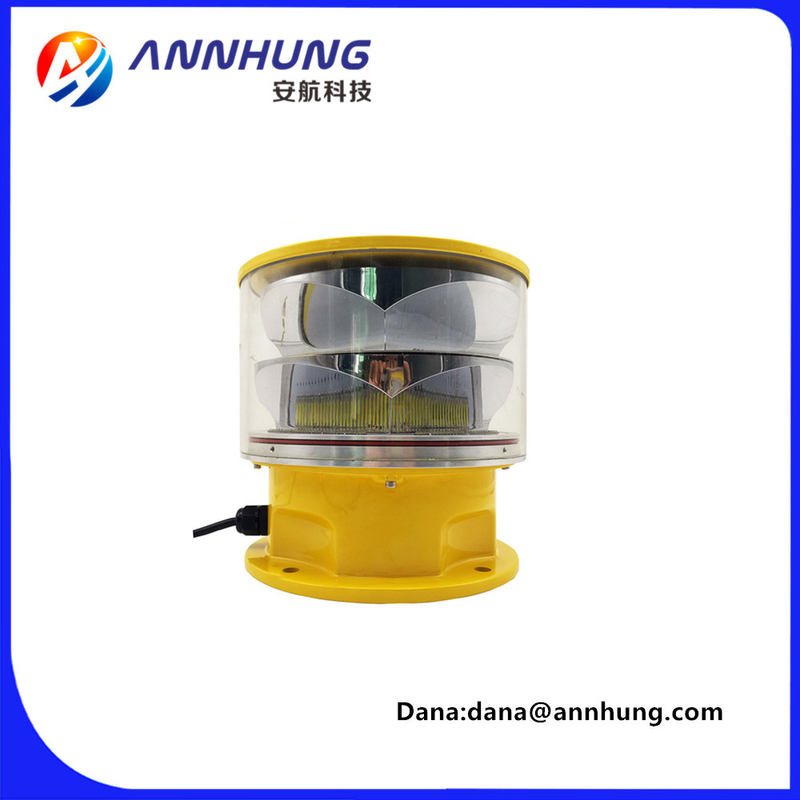

AH-MI-D1 Medium-intensity Double Aviation Obstruction Light


This LED Medium-intensity Double Aviation Obstruction Light emitting red color, designed for marking top of obstacle which height is between 45 to 105 meters.

Main-standby mode ensure the obstacle is always marked even one lamp fail. Because when main lamp fail, standby lamp will turn on automatically

Compliance

ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type B / C Obstruction Light
FAA FAA 150 5345-43J L-864 , L-885

Features

Electrical

CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
Power supply available in DC(12V, 48V) or AC(110-240VAC)

Physical

Unique design and UV protected polycarbonate lens for converging light
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection

System design

Built-in photocell for day/night operation(dusk to dawn operation)
Surge and lightning protection
Main-standby mode

Optional

Alarm contact for remote monitoring
Infrared LED for pilot using NVG
RS485/232 communication part for monitoring

Application

AH-MI-D1 medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM,
Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 45-105meter, and most time work with low intensity lights installed on the lower place.


Description Parameter
Light Source LED
Flash Characteristics
20FPM
Operation Mode
Dusk-to-dawn Automatically as standard. Main-standby
LED Life Experience(hours) >100,000
Operating Voltage DC(12V, 48VDC) or AC(110-240VAC) or others
Body Material Polycarbonate
Base Material Die-casting aluminum
Weight(kg) 4
Mounting
190×190×θ12
Dimension(mm)
236×236×215
Humidity
0%-100%
Wind Speed
80m/s
Waterproof IP66
ICAO
Annex 14 Volume 1,'Aerodrome Design and
Operations’ Seventh edition 2016, table 6.3
Medium-intensity Type B/C Red Obstacle Light







Company Information


Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent.


Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.
