500KV Aircraft Warning Sphere Aluminum Fastener High Rise Transmission Lines
  • 500KV Aircraft Warning Sphere Aluminum Fastener High Rise Transmission Lines
  • 500KV Aircraft Warning Sphere Aluminum Fastener High Rise Transmission Lines
  • 500KV Aircraft Warning Sphere Aluminum Fastener High Rise Transmission Lines

500KV Aircraft Warning Sphere Aluminum Fastener High Rise Transmission Lines

Place of Origin China
Brand Name ANNHUNG
Certification ICAO CE
Model Number AH-AWS
Product Details
Diameter:
θ600mm (Other Diameter Is Available If Request)
Color:
Bright Orange , Red Or White
Material:
Fiberglass Reinforced Polyester Resin
Weight Of Sphere:
6. 3Kg
Sphere Thickness:
2. 3mm
Conductor Size:
10mm- 35mm(others Are Customized)
High Light:

500KV Aircraft Warning Sphere

,

Aluminum Fastener Aircraft Warning Sphere

,

ICAO Aircraft Warning Balls

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton
Delivery Time
15-30 work days
Payment Terms
T/T, Western Union
Supply Ability
1000Pieces for one month
Product Description
AH-AWS Aircraft Warning Sphere

AH-AWS Aircraft Warning Sphere Designed to use for high-rise transmission lines, eg.110KV, 220KV, 500KV, Transmission cables, river-crossing transmission lines to provide the warning marks.

Compliance

ICAO (Aerodromes Annex 14)

Features

Diameter of Aircraft Warning Sphere: θ600mm (Other diameter is available if request)
Color: Bright Orange , Red or White
Material: Fiberglass reinforced polyester resin
Reflective efficiency: 0.34-0.8

Character of fiber glass:
-  Tensile strength≥128Mpa
-  Bending strength≥230Mpa
-  Temperature resistant: -40℃~+90℃

Fastener: Aluminum material, M10 by 35, M10 by 40
There are rainwater drainage holes on sphere avoid the water stayinside the ball
The uniformity of the sphere thickness make sure it’s table under aeolian vibration
Weight of Sphere: 6. 3Kg
Armor rod: aluminium alloy, 800mm
Material of bolts nuts & washer: stainless steel
Sphere thickness: 2. 3mm
Conductor size: 10mm- 35mm(others are customized)

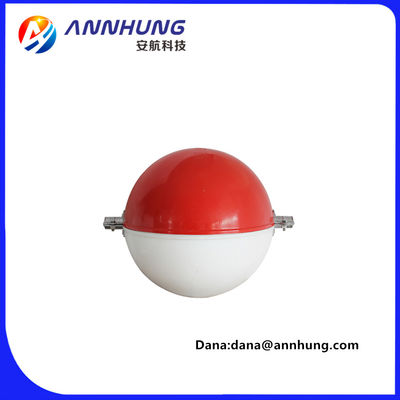

500KV Aircraft Warning Sphere Aluminum Fastener High Rise Transmission Lines 0

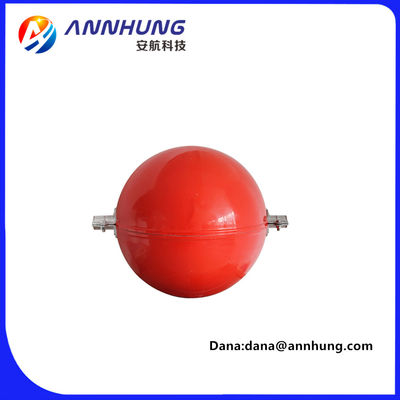

500KV Aircraft Warning Sphere Aluminum Fastener High Rise Transmission Lines 1
