2500cd Helipad Landing Lights Polycarbonate Lens UV Protected For Helideck
  • 2500cd Helipad Landing Lights Polycarbonate Lens UV Protected For Helideck
  • 2500cd Helipad Landing Lights Polycarbonate Lens UV Protected For Helideck

2500cd Helipad Landing Lights Polycarbonate Lens UV Protected For Helideck

Place of Origin China
Brand Name ANNHUNG
Certification ICAO CE
Model Number AH-HP-B2
Product Details
Available Colors:
White
Intensity(cd):
≥2500cd
Horizontal Output(degrees):
360
Vertical Divergence(degrees):
10
Flash Characteristics:
Morse Code “H”
Power(W):
12
Mounting:
200×200×θ12
Dimension(mm):
250×250×250
High Light:

2500cd Helipad Landing Lights

,

Polycarbonate Lens Helipad Landing Lights

,

UV Protected Helipad Rotating Beacon

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton
Delivery Time
7-15 work days
Payment Terms
T/T, Western Union
Supply Ability
2000Pieces for one month
Product Description

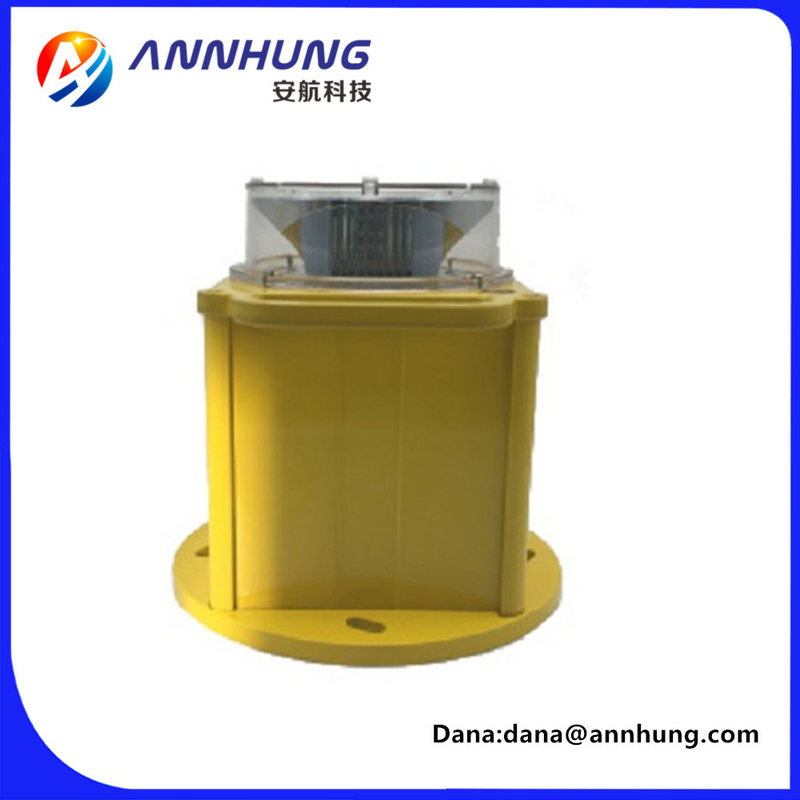

AH-HP-B2 LED Heliport Beacon

A heliport beacon should be provided at a heliport where long-range visual guidance is considered necessary and is not provided by other visual means; or identification of the heliport is difficult due to surrounding lights.

The heliport beacon shall be located on or adjacent to the heliport preferably at an elevated position and so that it does not dazzle a pilot at short range.

AH-HP-B2 flashes white color 4 times/0.8second and stop for 1.2s, then start new circle for 2seconds(0.8s+1.2s ).

2500cd Helipad Landing Lights Polycarbonate Lens UV Protected For Helideck 0

Compliance

ICAO Annex 14 Volume ǁ Heliports 5.3.2
FAA AC 150/5390-2B Heliport Design Guide
CAP 437

Features

Electrical

LED as light source saving power consumption and maintenance,95% less power than equivalent incandescent light
Power supply available in DC(12, 48VDC) or AC(110-240VAC)

Physical

Clear polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection

Optional

Controller for power supplying and turn ON/OFF light
VHF pilot to ground remote control

Application

Helipad/Heliport/Helideck


DescriptionParameter
Light SourceLED (IR is optional)
Available ColorsWhite
Flash Characteristics
Morse code “H”
LED Life Experience(hours)>100,000
Operation Mode
24hours operation
Body Material
UV protected Polycarbonate
Base Material
Powder-coated Die-casting aluminum
Weight(kg)3.5
Product Life Expectancy≥10 years
Ambient Temperature(℃)
-35~80
Humidity
10~90%
Wind Speed80m/s
WaterproofIP66
ICAO
ICAO Annex 14 Volume ǁ Heliports 5.3.2
