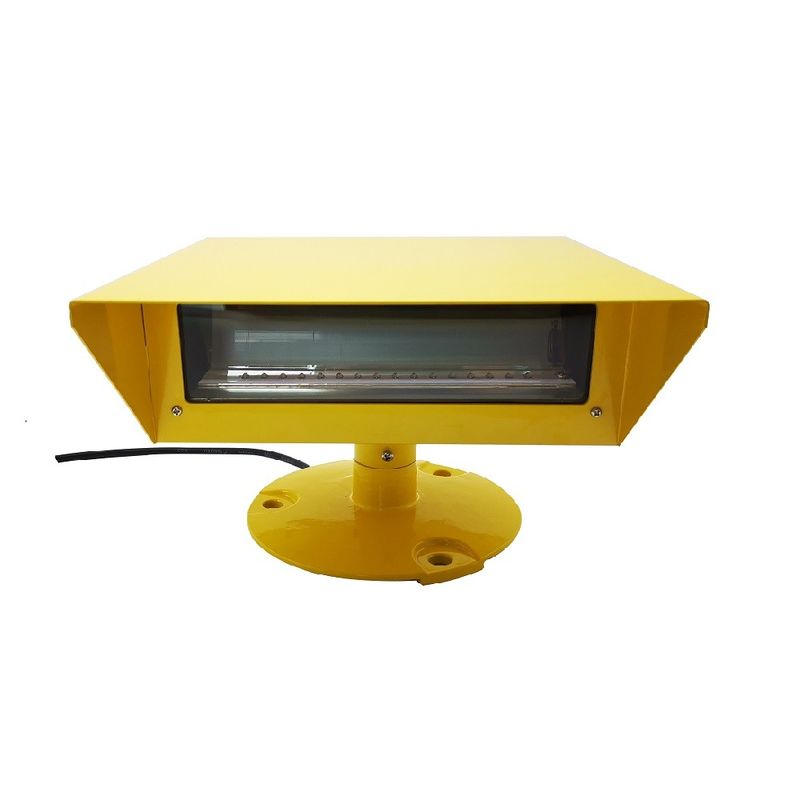

VHF Pilot Heliport Flood Light 120lm/W Helideck IP66 Waterproof
  • VHF Pilot Heliport Flood Light 120lm/W Helideck IP66 Waterproof
  • VHF Pilot Heliport Flood Light 120lm/W Helideck IP66 Waterproof
  • VHF Pilot Heliport Flood Light 120lm/W Helideck IP66 Waterproof

VHF Pilot Heliport Flood Light 120lm/W Helideck IP66 Waterproof

Place of Origin China
Brand Name Annhung
Certification CE, RoHS,ICAO
Model Number AH-HP/F1
Product Details
Color:
White
Weight(kg):
2.4
ICAO:
ICAO Annex 14 Volume ǁ Heliports 5.3.9
Light Source:
LED
Flash Characteristics:
Steady Burning
Operation Mode:
24hours Operation
High Light:

VHF Pilot Heliport Flood Light

,

120lm/W Heliport Flood Light

,

IP66 Waterproof Helipad Bidirectional Light

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Carton
Delivery Time
7-15work days
Payment Terms
T/T, Western Union, D/P
Supply Ability
1000pieces for one month
Product Description

Heliport Surface Flood Light Application Helipad Helideck White 120lm/W


LED Surface Floodlights improve pilot depth perception by reflecting the surface of the helipad/helideck, allowing pilots to better estimate their altitude during landing.



Compliance

ICAO Annex 14 Volume ǁ Heliports 5.3.9
FAA AC 150/5390-2B Heliport Design Guide

Features

Electrical

High intensity, energy efficient LED, glare-free floodlight
Period of LED Life ≥100,000 hours
Power supply available in AC(110-240VAC), DC48V, DC12V, etc
Ultra-efficient LED reduce power consumption

Physical

The enclosure is made out of stainless steel powder coated in electrostatic field, ensure it have good weather resistance
The assembly has a low profile of less than 25cm and mounts to frangible point
Specially custom lens optic designed specifically for helipad operation

Optional

Infrared LED for pilot using NVG(Night Vision Goggles)
Controller for power supplying and turn ON/OFF light
VHF pilot to ground remote control

Application

Helipad/Heliport /Helideck

Description Parameter
Flash Characteristics
Steady burning
Operation Mode
24hours operation
Light Source
LED
Operating Voltage
110-240VAC, 48VDC, 24VDC or others
Enclosure Material
Powder Coated Stainless Steel
Ambient Temperature(℃)
-55~70
Humidity
0~100%
Wind Speed
80m/s
Waterproof
IP66
ICAO
ICAO Annex 14 Volume ǁ Heliports 5.39
Options Available


Infrared LED compatible for NVG (Night
Vision Goggles)

VHF pilot to ground remote control

Controller for power supplying and turn ON/OFF light


VHF Pilot Heliport Flood Light 120lm/W Helideck IP66 Waterproof 0


Company Information


Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent.
Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.
