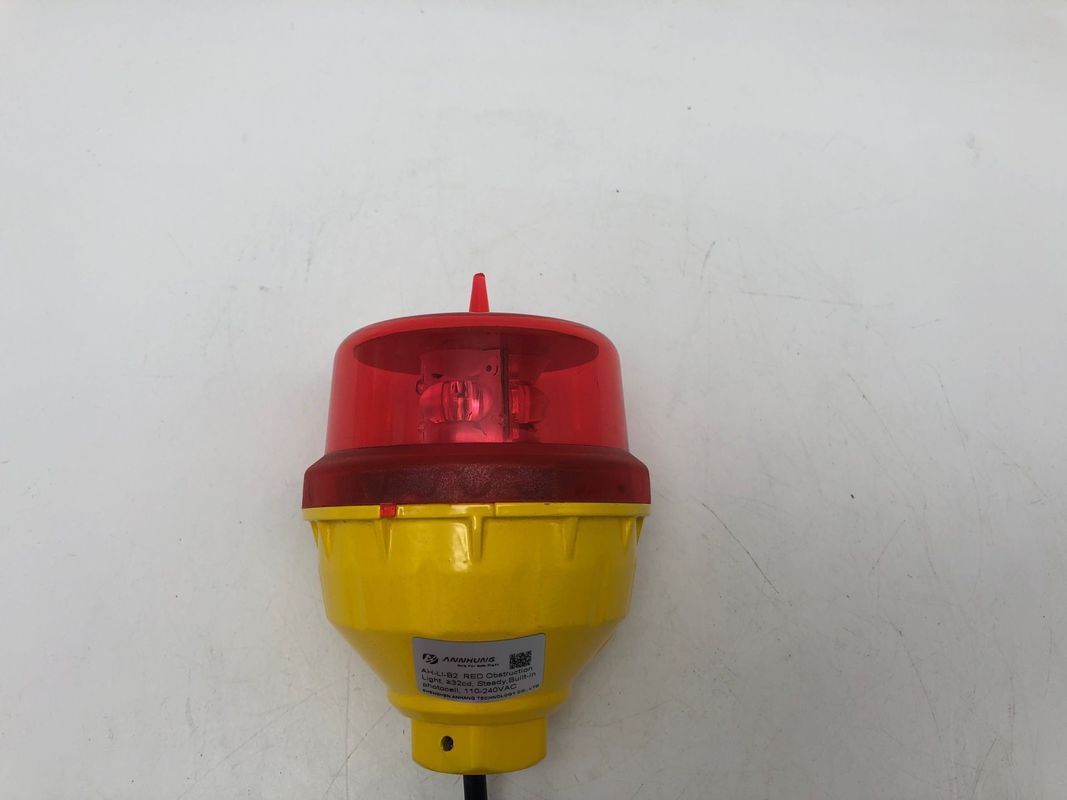

NVG Pilot Single Aviation Obstruction Light Polycarbonate Low Intensity 30FPM
  • NVG Pilot Single Aviation Obstruction Light Polycarbonate Low Intensity 30FPM
  • NVG Pilot Single Aviation Obstruction Light Polycarbonate Low Intensity 30FPM

NVG Pilot Single Aviation Obstruction Light Polycarbonate Low Intensity 30FPM

Place of Origin China
Brand Name Annhung
Certification CE, RoHS,ICAO
Model Number AH-LI/B2
Product Details
Colors:
Red(Other Color Is Optional)
Intensity(candela):
≥32.5cd(type B),others Optional
Mounting:
3/4 Inch Pipe Thread As Standard. 1inch As Option
Dimension(mm):
Φ90×130
Type:
Low Intensity
Name:
Single Aviation Obstruction Light
High Light:

NVG Pilot Single Aviation Obstruction Light

,

Polycarbonate Single Aviation Obstruction Light

,

30FPM Aircraft Warning Light

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Carton
Delivery Time
7-15work days
Payment Terms
D/P, T/T, Western Union
Supply Ability
2000Pieces for one month
Product Description

Low - Intensity Single Aviation Obstruction Light with Steady Burning



This Low-intensity light is a steady burning aviation obstruction light designed for marking top of obstacle that do not exceed 45 meters in height.

Compliance

ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B / E Obstacle Light
FAA L-810

Features

Electrical

3 high power CREE LED, make sure LED keep bright while use
Power supply in DC(48V)& AC(110-240VAC), the light could work normally when input 48VDC/110VAC/240VAC
LED power supply board includes short circuit and open circuit protection, Line surge protection by metal oxide varistor

Physical

Bird deterrent spike on top
UV protection Powder coated bright yellow color base make better visibility and also long life in harsh environments
3/4inch thread hole make pole installation easy
No screw fix type - just twist, the cover will be fixed tightly

System design

Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance is below 50cd/m2
Steady(factory setting)/20FPM/30FPM/60FPM DIP switches on PCB
Surge and lightning protection

Optional

Alarm contact(NO COM NC)for remote monitoring
Infrared LED for pilot using NVG
GPS sync flashing

Application

AH-LI-B2 low-intensity light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than 45m.
When obstacle object is higher than 45m, AH-LI-B2 can be used with Medium-intensity or high-intensity obstruction light to indicate hazardous obstructions with a steady red safety light.

Description Parameter
Light Source
LED
Flash Characteristics
Steady-burning/20/30/60 adjustable
Operation Mode
Dusk-to-dawn Automatically as standard.
LED Life Experience(hours)
>100,000
Operating Voltage
DC(12V, 48VDC) or AC(110-240VAC) or others
Body Material
Polycarbonate
Base Material
Die-casting aluminum
Weight(kg)
0.3
Ambient Temperature(℃)
-40~55
Storage temperature(℃)
-55~70
Humidity
10%-95%RH(No condensation)
Wind Speed
240Km/h
Waterproof
IP66
FAA
L-810
