366 IALA Solar Marine Lanterns PC Housing For 12NM Safe Navigation
  • 366 IALA Solar Marine Lanterns PC Housing For 12NM Safe Navigation

366 IALA Solar Marine Lanterns PC Housing For 12NM Safe Navigation

Place of Origin China
Brand Name Annhung
Certification CE, RoHS,ICAO
Model Number AH-ML/S0
Product Details
Name:
AH-ML-S0 LED Solar Powered Marine Lanterns
Colors:
White, Blue, Red, Green, Yellow
Horizontal Output(degrees):
360
Vertical:
5
Nominal Voltage:
12Vdc
Circuit Protection:
Integrated
High Light:

366 IALA Solar Marine Lanterns

,

PC Housing Solar Marine Lanterns

,

12NM Solar Navigation Lights

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Carton
Delivery Time
7-15work days
Payment Terms
T/T, Western Union, D/P
Product Description

Solar Marine Lanterns for 12 NM Safe Navigation 366 IALA light characteristics

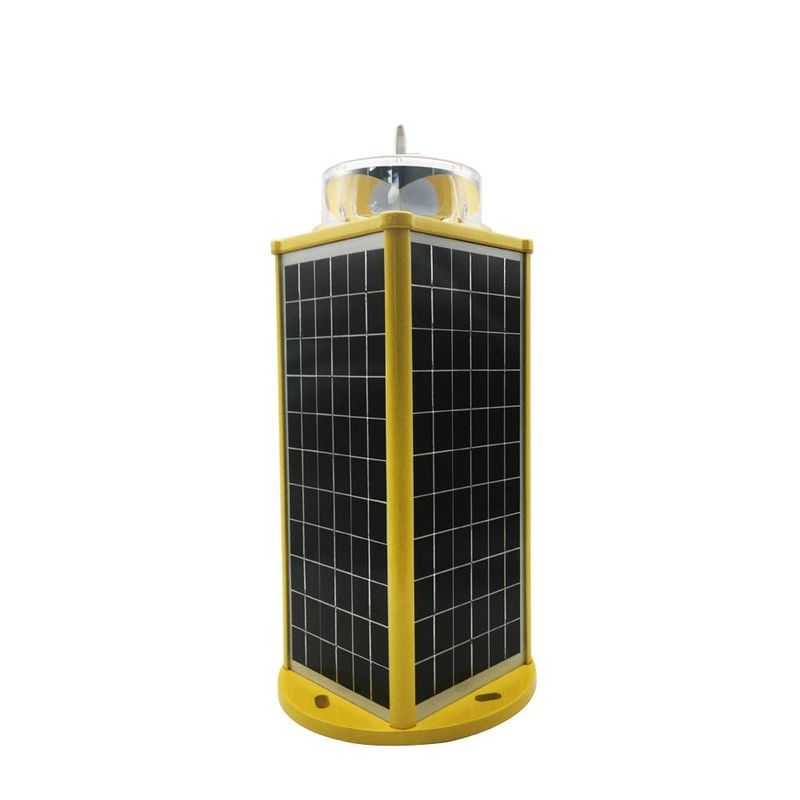

This LED Marine Lanterns is completely self-contained lantern. Four (4) solar panels are integrated into the assembly and mounted to collect sunlight at all angles.
CREE Ultra high intensity LED is used as light source which make performance better.

Compliance

IALA E-200-1
CE(LVD+EMC)

Features

Electrical

Based on LED technology, and its color complies to IALARecommendations E-200-1.
LED technology reduces maintenance time & costs

Physical

PC housing, UV resistance, shockproof and corrosion proof.
Powder coated die casting aluminum base for marine use
4-side mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
ON/OFF button interface
Handle on top for easy transportation
Bird spike avoid the bird standing on our lantern

System design

Solar panel as photocell for day/night operation(dusk to dawn)
The flashing rate(Fixed mode included) is adjust by IR programmer. If the ender user will use the fixed mode as the final working mode, please inform us before order.

Optional

External charger
RS232/485 port
GPS sync flashing
GSM monitoring

Application

AH-ML-S0 Solar Marine Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation.

Description Parameter
Light Source
LED
Visible Range(NM)
8-12 (AT@0.74)
Flash Characteristics
Adjustable 366 IALA light characteristics
Solar Module Type
Mono crystalline Silicon
Charging Regulation
Microprocessor controlled
Battery type
Lithium ion battery(other type is optional)
Body Material
UV protected Polycarbonate
Base Material
Powder-coated Die-casting aluminum
Mounting(mm)
200×200×Φ12
Dimension(mm)
250×250×530
Weight(kg)
10
Humidity
0~100%
Wind Speed
80m/s
Waterproof
IP68
