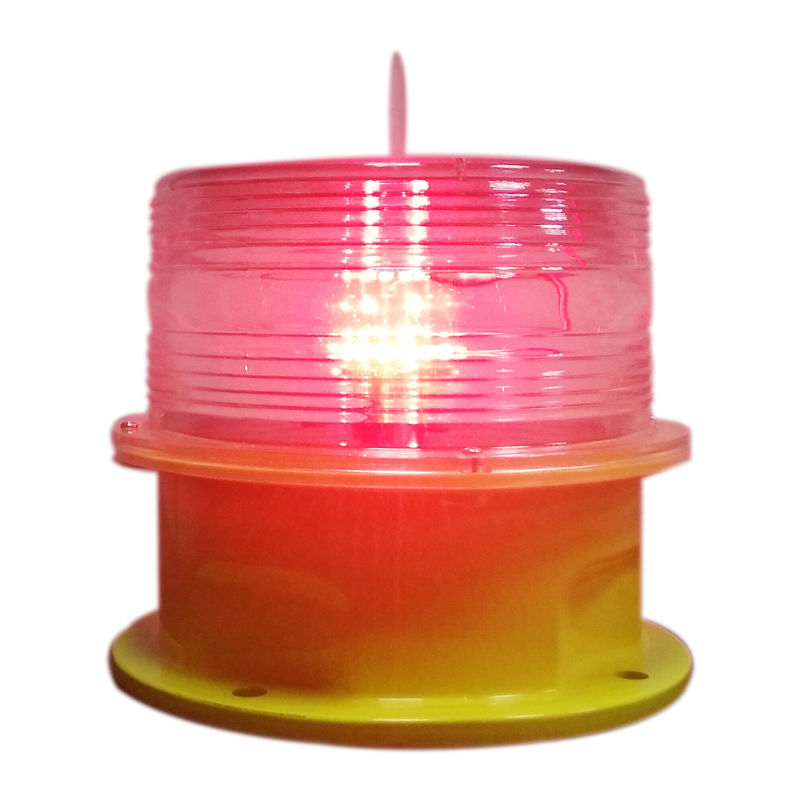

IALA 366 Solar Marine Lantern Monocrystalline Silicon GPS Sync Flashing
  • IALA 366 Solar Marine Lantern Monocrystalline Silicon GPS Sync Flashing

IALA 366 Solar Marine Lantern Monocrystalline Silicon GPS Sync Flashing

Place of Origin China
Brand Name Annhung
Certification CE, RoHS,ICAO
Model Number AH-LS/C1
Product Details
Name:
Solar Marine Lanterns
Colors:
Yellow, White, Blue, Red, Green
Flash Characteristics:
Adjustable IALA 366 Flash Characters
LED Life Experience:
>100,000 Hours
Operation Mode:
Dusk-to-dawn Automatically (Built-in Photocell)
Solar Module Type:
Monocrystalline Silicon
High Light:

IALA 366 Solar Marine Lantern

,

Monocrystalline Silicon Solar Marine Lantern

,

Sync Flashing Solar Aviation Light

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Carton
Delivery Time
7-15work days
Payment Terms
T/T, Western Union
Product Description

Solar Marine Lanterns IALA 366 flash characters GPS sync flashing





This LED Marine Lanterns is completely self-contained lantern, adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply.
The user could change the light flashing characteristics (IALA 366 flashes) easily by IR programmer.

Compliance

IALA E-200-1

Features

Electrical

Based on LED technology, and its color complies to IALA Recommendations E-200-1.
LED technology reduces maintenance time & costs

Physical

Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
PC housing,UV resistance, shockproof and corrosion proof.
Bird deterrent spike
Powder coated die casting aluminum base
Built-in monocrystalline silicon solar panel, conversion efficiency is better than polycrystalline silicon

System design

Built-in photocell for day/night operation(dusk to dawn operation)
Adjust 366 flash characteristics comply with IALA, including “fixedmode”, If the ender user will use the fixed mode as the final working mode, please inform us before order.
ON/OFF button interface located under base.
Euipped with IR programmer, so the user could set the flashing rate remotely without open the light.

Optional

External battery charger
GPS sync flashing

Application

AH-LS-C1 Solar Marine Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation.


Description Parameter
Mode AH-LS-C1
Standard IALA E-200-1
Visible distance
2-4NM (AT@0.74)
Flash Characteristics
Adjustable IALA 366 flash characters
Light source LED
Available Colors
Red, Green, Yellow, White, Blue
Vertical Divergence(degrees)
Horizontal Output(degrees)
360°
Service life of LED 100, 000hours
Operating Voltage
3.7Vdc
Battery type
Lithium ion battery
Autonomy
Steady: 60 Flashing: 150(longer time is optional)
Mounting(mm)
190×190×Φ12
Dimension(mm)
220×220×233
Weight 2.5Kg
Humidity
0~100%
Ambient Temperature -55℃~+60℃
Wind load 80m/s
Waterproof
IP68
