PMMA Lens 30fpm LED Aviation Obstruction Lights Polycarbonate AH-LI-D2
  • PMMA Lens 30fpm LED Aviation Obstruction Lights Polycarbonate AH-LI-D2
  • PMMA Lens 30fpm LED Aviation Obstruction Lights Polycarbonate AH-LI-D2
  • PMMA Lens 30fpm LED Aviation Obstruction Lights Polycarbonate AH-LI-D2

PMMA Lens 30fpm LED Aviation Obstruction Lights Polycarbonate AH-LI-D2

Place of Origin China
Brand Name Annhung
Certification ICAO
Model Number AH-LI-D2
Product Details
Product Name:
Low-intensity L810 Double Aviation Obstruction Light
Light Source:
Red(Other Color Is Optional)
Intensity(cd):
≥32.5cd(type B),others Optional(10cd, 100cd,etc)
Horizontal Output(degrees):
360
Flash Characteristics:
Steady-burning/20/30/60 Adjustable
Working Mode:
Main & Stand By(other Modes Are Optional)
Operation Mode:
Dusk-to-dawn Automatically As Standard.
LED Life Experience(hours):
>100,000
Body Material:
Polycarbonate
Base Material:
Die-casting Aluminum
Ambient Temperature(℃):
-40~65
Storage Temperature(℃):
-55~70
High Light:

PMMA Lens LED Aviation Obstruction Lights

,

30fpm LED Aviation Obstruction Lights

,

Polycarbonate Double Aviation Obstruction Lights

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Carton
Delivery Time
7-15days depends on quantity
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
2000 pieces per month
Product Description

Low Intensity Double LED Aviation Obstruction Lights/Aircraft Warning Lights



This LED Low-intensity Double light is a steady burning (20/30/60fpm is adjustable) aviation obstruction light designed for marking top of obstacle that do not exceed 45 meters in height.
Main-standby mode ensure the obstacle is always marked even one light fail.



Compliance:
** ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B /E Obstacle Light
** FAA L-810

Electrical
CREE LED, make sure LED keep bright while use for long time
Power supply in DC(48V)& AC(110-240VAC), the light could work normally when input 48VDC/110VAC/240VAC

Physical
Bird deterrent spike on top
Unique designed PMMA lens for converging light and good transparency.save your power.
High translucency and anti-UV polycarbonate cover could use 3-5years without yellowing. Better quality for your projects.
UV protection Powder coated bright yellow color base make better visibility and also long life in harsh environments()
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
3/4inch thread hole make pole installation easy
No screw fix type - just twist, the cover will be fixed tightly. It's convenient for test.

System design
Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance is below 50cd/m2
Steady/20FPM/30FPM/60FPM DIP switches on PCB. Meet your needs to different useages.
Surge and lightning protection
Main-standby mode, when the main light fail, the standby light automatically switch on to ensure the obstacle is always clearly marked.

Optional
Alarm contact(Dry contact- NO COM NC) for remote monitoring
Infrared LED for pilot using NVG. If you are interested, contact me now!

Application
AH-LI-D2 low-intensity safe aviation warning light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than 45m. Compliance FAA L810

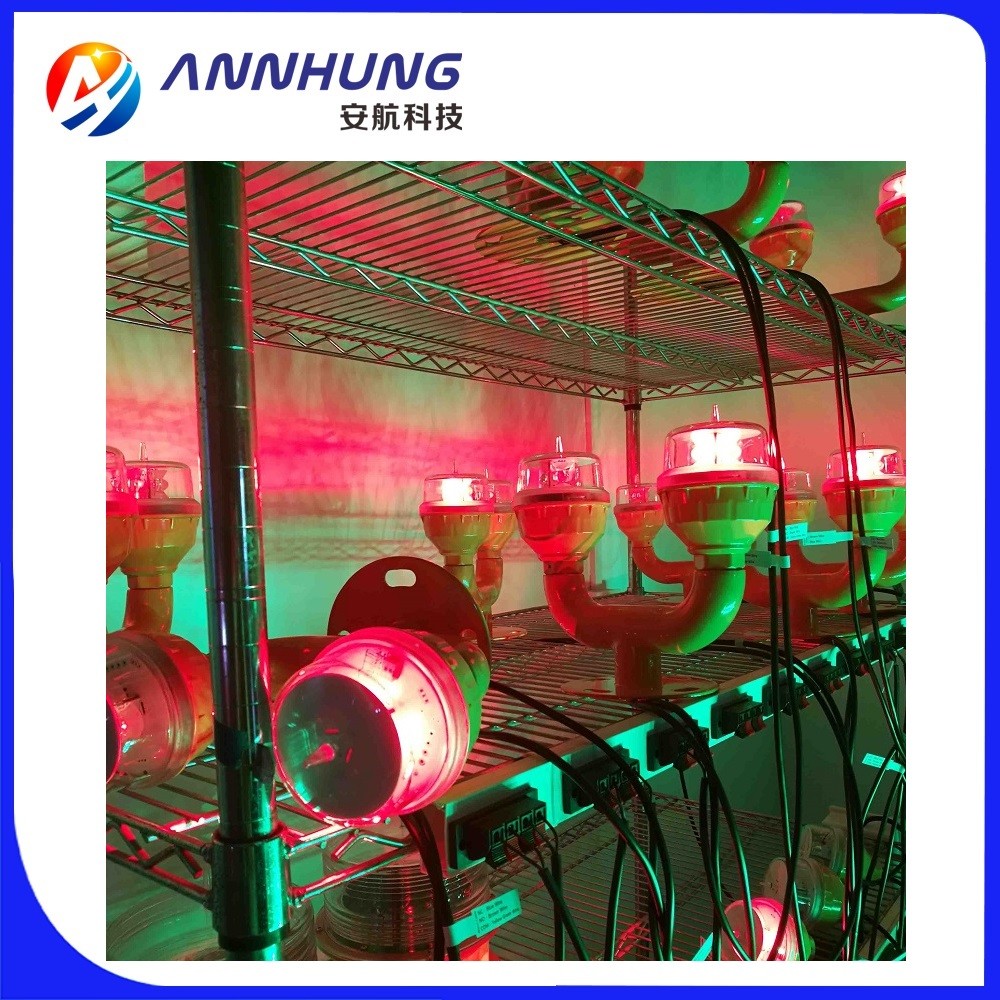

PMMA Lens 30fpm LED Aviation Obstruction Lights Polycarbonate AH-LI-D2 0



Light Source LED
Available Colors Red
Intensity(cd) > 32cd (Support customized)
Reflector Type Fresnel Lens
Flash Characteristics Steady/20/30/60fpm adjustable
Easy test just twist, the cover will be fixed tightly
Body Material Polycarbonate
Base Material Die-casting aluminum
Mounting 3/4inch
Dimension(mm) 254*210*90
Weight(kg) 1.5
Product Life Expectancy 5 years Plus
Humidity 10%-95%
Wind Speed
240Km/h
Waterproof IP66
ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Sixth edition 2013, table 6.3
FAA L-810
