Place of Origin | China |
Brand Name | ANNHUNG |
Certification | ICAO, CE, ISO 9001 |
Model Number | AH-LI-B2 |

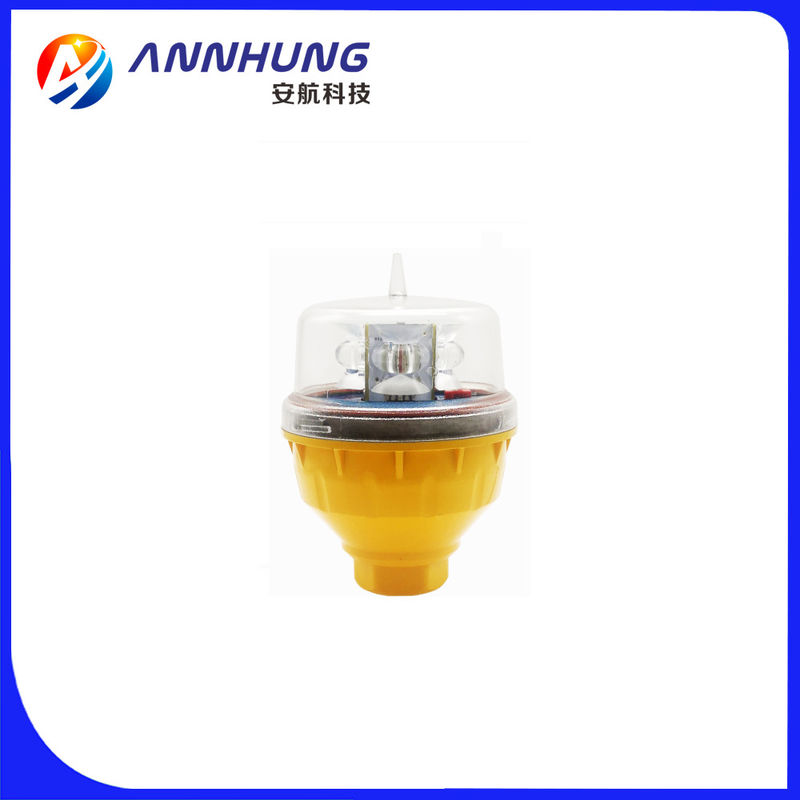

AH-LI-B2 Low - Intensity Single Aviation Obstruction Light with Steady Burning or Flashing Adjustable
obstruction light
aviation obstruction light
L810 aviation warning lights
aircraft low intensity obstrunction light
Low-intensity aviation obstruction light
Main Parameter
Description | Parameter |
Mode | AH-LI-B2 |
Intensity | 32.5cd(type B), others optional |
Flash rate | Steady-burning |
Light source | LED |
Service life of LED | ≥ 100,000hours |
Operating voltage | 48VDC or 12VDC or 110VAC or 220VAC |
Power(W) | 2.5W |
Overall size(mm) | 90 by 90 by 130 |
Mounting | 3/4 inch pipe thread as stadard. 1inch as option |
Vertical degree | ≥ 10° |
Horizontal degree | 360° |
Material | |
Housing | Polycarbonate |
Base | die casting aluminum |
Weight | 0.3Kg |
Emitting color | Red(Other color is optional) Red(Other color is optional) |
Ambient Temperature(℃) | -55℃~+70℃ |
Wind load | 80m/s |
Protectionstandard | IP65 |
Advantages
1.PC material with good impact protection strength, thermal stability, high transmittance.
2.Bird spike against bird drop.
3.International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
4.LED based on obstruction light last 15 times longer than traditional light source, incandescent light.
5.About 96% less power than 116W incandescent light.
6.Major Maintenance Cost Saving, Surge protection device inside light.
7.Strong corrosion resistance, Shock and Vibrations protection and UV protection.
8.3/4inch or 1inch(optional) thread hole make pole installation easy
Compliance
Low-intensity Type B FAA L-810
ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Low Intensity Type A Obstruction Light
System design
l Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance is below 50cd/m2
l Steady(factory setting)/20FPM/30FPM/60FPM DIP switches on PCB
l Surge and lightning protection
Optional
l Alarm contact(NO COM NC)for remote monitoring
l Infrared LED for pilot using NVG
l GPS sync flashing
