Place of Origin | China |
Brand Name | ANNHUNG |
Certification | ICAO, CE, ISO 9001 |
Model Number | AH-HP-PAPI |

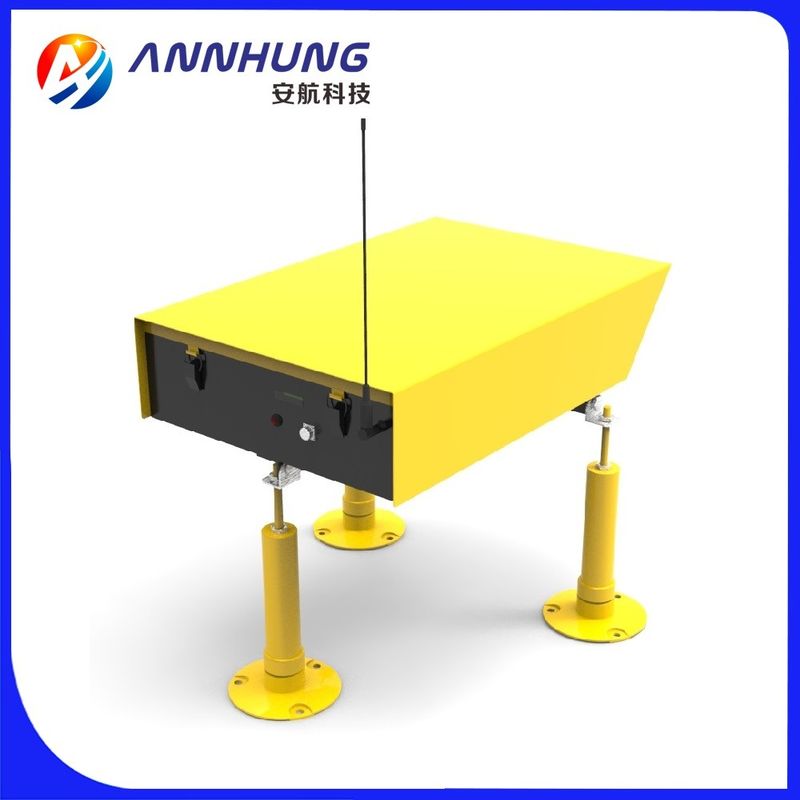

The LED Precision Approach Path Indicator short for PAPI is used to guide helicopter to approach the right runway at an appropriate altitude.
There are two Colors- red, white, which to show two wide horizontal angles in different color. The PAPI is projected in fan shaped array into the incoming flight pattern.
Solar power system is optional for PAPI. Suitable for place farway from city and lack of electricity.
SPECIFICATIONS | AH-HP-PAPI LED Precision Approach Path Indicator |
Light Characteristics | |
Light Source | LED |
Available Colors | Red/White |
Azimuthr range(degree) | 8° |
Working mode | Steady burning |
Operation Mode | 24hours operation |
LED Life Experience(hours) | >100,000 |
Electrical Characteristics | |
Operating Voltage | AC220V |
Power(W) | 70W*3 |
Circuit Protection | Integrated |
Physical Characteristics | |
Body Material | Stainless steel |
Leg material | Die casting aluminum |
Mounting | 140x M10 |
Dimension(mm) | 557x740x464 |
Weight(kg) | 18 |
Environmental Factors | |
Ambient Temperature(℃) -55℃~+70℃ |
-35~80 |
Humidity | 10~90% |
Wind Speed | 80m/s |
Waterproof | IP65 |
Compliance | |
ICAO |
ICAO, Annex 14th, Volume I, 6th Edition dated 2013,AO Annex 14 Volume II –Figure 5-11
|
2013, clauses 5.3.5.28 – 5.3.5.40, Figure A2-23
|
|
Appendix 1, 2.1.1
|
|
Options Available | |
Solar Power system | |
VHF Pilot to Ground Remote Control | |
Wireless Remote Control |
PAPI Visual guide:
Compliance
FAA AC 150/5390-2B Heliport Design Guide
ICAO Annex 14 Volume I 6th Edition dated 2013 clauses, 5.3.5.28 – 5.3.5.40, Figure A2-23 Appendix 1, 2.1.1
Features
Electrical
Ultra high light-emitting diode is the light source which could save much power consumption
Power supply available in AC(110, 240VAC), DC48V or others
Physical
Polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
UV protection Powder coated bright yellow color base make better visibility
Housing material is stainless steel which has strong corrosion resistance, Shock and Vibrations protection
Fragile coupling reduce the secondary damage to helicopters effectively
Optional
Clinometer
VHF pilot to ground remote control
Solar power system
Application
Permanent, Temporary, Emergency Helipad/Airport/Helideck
OFFSHORE/ ONSHORE USAGE
