LED Aviation Obstruction Light
>
|
| Place of Origin | China |
| Brand Name | Anhang |
| Certification | CE, RoHS |
| Model Number | AH-LI-DE |

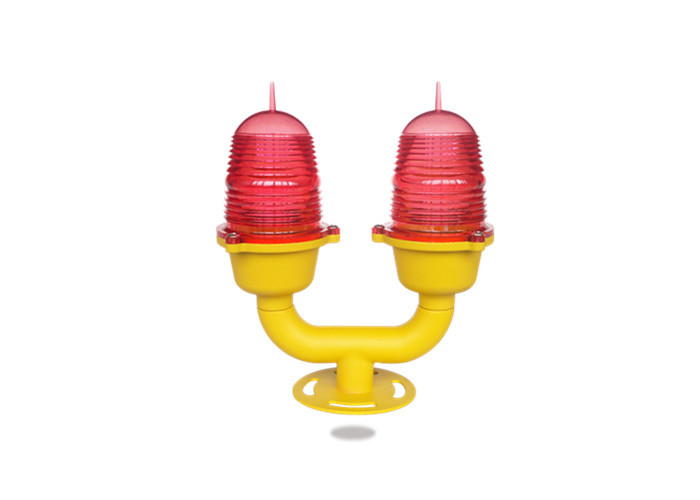

This Low-intensity Double light is a steady burning aviation obstruction light designed for marking top of obstacle that do not exceed 45 meters in height. Main-standby mode ensure the obstacle is always marked even one light fail. Main lamp and spare lamp dual lamp design to ensure building safety.
Product Standard:
ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Low Intensity Type A / B Obstruction Light
FAA L-810
Electrical
LED as light source saving power consumption and maintenance,95% less power than equivalent incandescent light. Better light source,better product quality.
Power supply available in DC(12-48VDC) or AC(110-240VAC)
Physical
Bird deterrent spike on top, the light better cleaner.
Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection. Make use time be longer.
UV protection Powder coated bright yellow color base make better visibility.
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
3/4inch or 1inch(optional) thread hole make pole installation easy
System design
Built-in photocell for day/night operation(dusk to dawn operation).
Steady/Flashing(20flashes per minute) DIP switch on PCB. Switch mode is more free
Surge and lightning protection
Application
AH-LI-DE E27 could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM,Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than 45m. E27 lampshade replacement without trouble.
When obstacle object is higher than 45m, AH-LI-DE can be used with Medium-intensity or high-intensity obstruction light to indicate hazardous obstructions with a steady red safety light. Wider usage is your choice.
More detailed parameter:
| Light Source | LED |
| Available Colors | Red |
| Intensity(cd) | 10cd (type A), 32.5cd(type B), others optional |
| Flash Characteristics | Steady burning, Main & stand by |
| Reflector Type | Fresnel Lens |
| Body Material | Polycarbonate |
| Base Material | Die-casting aluminum |
| Mounting | 3/4 inch pipe thread as standard. 1inch as option |
| Dimension(mm) | 320*258*136 |
| Weight(kg) | 2.5 |
| Product Life Expectancy | 5 years Plus |
| Ambient Temperature(℃) | -55~70 |
| Humidity | 10%-95% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| Options Available |
NVG(Night Vision Goggles) compatible LED |
Contact us:
Produce imagine:
Delivery:
Shenzhen Anhang Technology Company Limited is a specialized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, and have more than 8 years manufacturing experience for clients from whole world. If you need my help, feel free to contact me.
