Solar Aviation Obstruction Light
>
|
| Place of Origin | China |
| Brand Name | Anhang |
| Certification | CE, RoHS |
| Model Number | AH-LS-A |

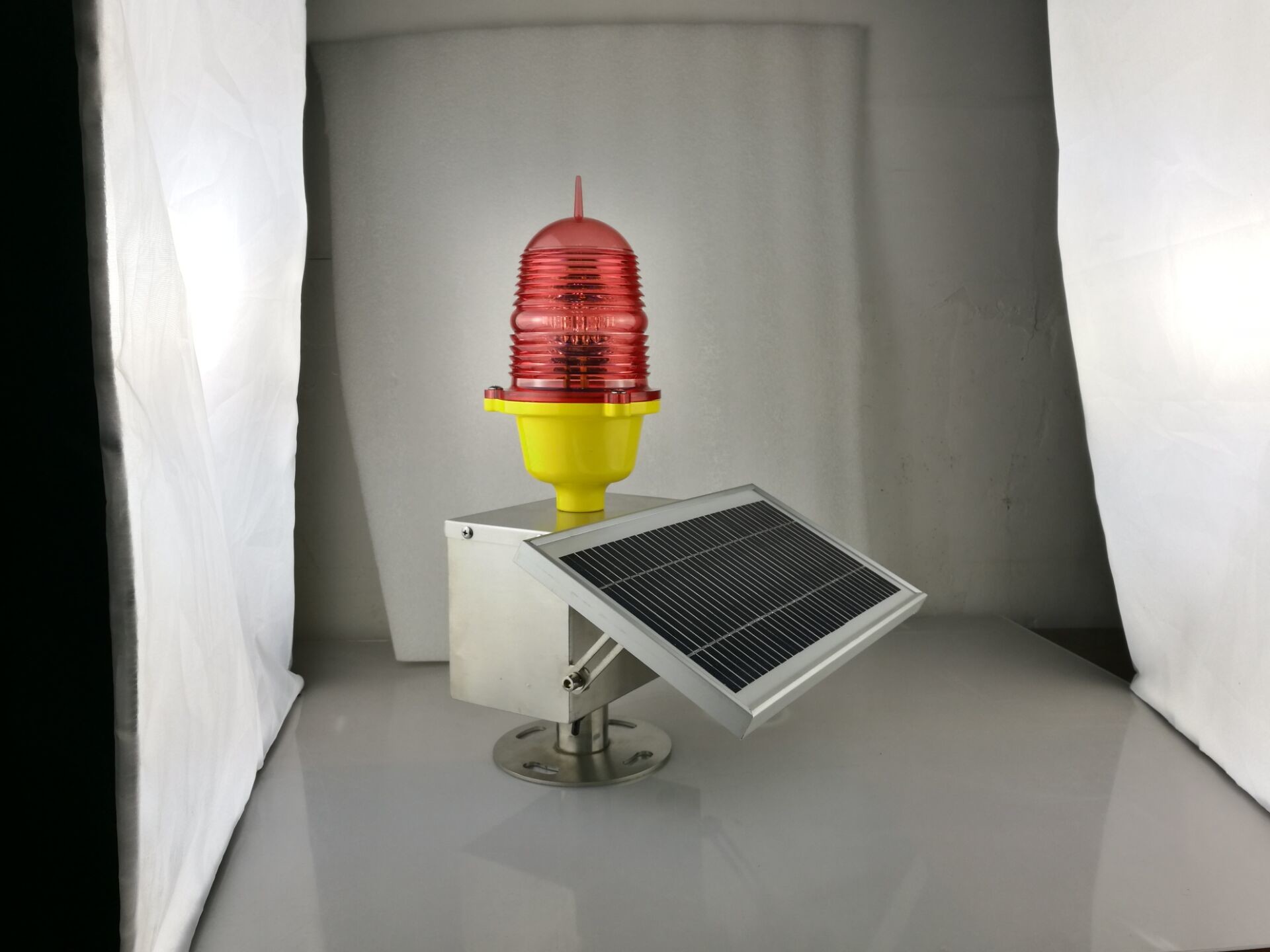

AH-LS-A is a self-contained obstruction light which consist of solar panel, battery and lamp. There is no need for external power input. The vertical degree of the solar panel is adjustable to ensure it could get the most sunlight in different area.It is designed for marking top of obstacle that do not exceed 45 meters in height.
Compliance
** CAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Low Intensity Type A / B Obstruction Light
** FAA L-810
Electrical
* LED as light source, life experience >100,000hours
Physical
With bird needle to prevent bird drop
UV & vibrations protected polycarbonate lens for converging light
Powder coated die casting aluminum base, light fastness, resist snow and rain
Battery box made of corrosion resistant 304 stainless steel
Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation
Solar panel vertical degree is adjustable
System design
♦ Solar panel as sensor(Photo diode) for day & night working mode (dusk to dawn mode)
♦ ON/OFF button under base make local control easy
♦ Steady/Flashing(20fpm) adjustable switch available
♦ Solar panel angel is adjustable (Vertical 15-90° )
Optional
► GSM cellphone monitoring
► Infrared LED for pilot using NVG(Night Vision Goggles)
► Remote control ON/OFF
Application
AH-LS/A solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.
Used alone on the top of obstacle which height is less than 45meter.
More product parameter:
| Intensity(cd) | ≥32.5cd |
| Flash Characteristics | Steady/Flashing(20fpm) adjustable |
| Solar Module Type | Mono crystalline Silicon |
| Output(watts) | 12 |
| Charging Regulation | Microprocessor controlled |
| Battery type | Lithium ion battery |
| Nominal Voltage (V) | 12 |
| Battery Service Life | Average 3 years |
| Autonomy (hours) | Steady: 90, Flashing: 180 |
| Lamb Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Overall Size (mm) | 162×162×160 |
| Installation Size | 140×140×M6 |
| Product Life Expectancy | Average 5 years |
| Ambient Temperature(℃) | -55~70 |
| Humidity | 0~90% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
