Medium - intensity Type B Aviation Obstruction Light Flashing 20 - 60 FPM Red Color
  • Medium - intensity Type B Aviation Obstruction Light  Flashing 20 - 60 FPM Red Color
  • Medium - intensity Type B Aviation Obstruction Light  Flashing 20 - 60 FPM Red Color

Medium - intensity Type B Aviation Obstruction Light Flashing 20 - 60 FPM Red Color

Place of Origin Shenzhen, China
Brand Name Annhung
Certification CE
Model Number AH-MI/E
Product Details
Type:
LED Aviation Obstruction Lights
Input Voltage(V):
AC220V (option Voltage,eg.AC120V,AC110,DC48V)
Working Mode:
Flashing Mode(20-60times/minute)
IP Rating:
IP65
Base:
Die Casting Aluminum
Emitting Color:
Aviation Red
Ambient Temperature:
-40℃~+60℃
Power Consumption:
20W
High Light:

high intensity light

,

aviation obstruction light

Payment & Shipping Terms
Minimum Order Quantity
1 Piece
Price
Negotiable
Packaging Details
Plastic bag with Paper Carton
Delivery Time
2-50 days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1000 pieces per month
Product Description

Medium-intensity Type B Aviation Obstruction Light Flashing 20-60 FPM Red Color





Medium Intensity Type B Aviation Obstruction Light is a Red flashing obstruction light. For high rise buildings or structures with height between 45 to 105 meters, this Medium Intensity Type B Aviation Obstruction Light could be used solely or together with low intensity aviation obstruction light to play an aviation warning role there. Also, it could be used together with medium intensity type A aviation obstruction light or high intensity aviation obstruction light on buildings or structures whose height are higher than 105 meters.



Key features



1 . Lamp shade of the light adopts PC which is quite high antiimpact , hot resistance, high efficiency light transmission up to 90%, anti-UV,

2 . House of the light is made of die casting aluminum and painted by spraying plastics finish. It is light, good ability of heat release, waterproof, impact resistance, corrosion resistance etc..

3 . Light source adopts LED which is with long lifespan up to 100,000hrs, lower power consumption and high efficiency.

4 . The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, Imax 15KA so that the light is suitable to harsh environment.



Product Application



High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),High Pole,Tower Crane, Wind Tubinebridge.large-scale port machinery,large engineer machinery and wind turbines.



Packaging & Delivery



Packaging: Plastic bag with paper carton.

Delivery: In 2-30 days after payment.



After-sales service



1 . 2 years full warranty, 5 years maintenance since the purchasing date.

2 . Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.

3 . Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.





Product Descripton



Description Parameter
Standard ICAO (Aerodromes Annex 14) Medium-intensity Type B and FAA L-864
Vertical angle
Light source LED
Horizontal angle 360°
Available color Aviation red
Working mode Flashing mode(20-60times/minute, ICAO standard; 20 to 40times/minute, FAA standard)
Supply voltage AC220V (option voltage, eg. AC120V, AC110V, DC48V)
LED lifetime ≥100,000h
Power rating 20W
Intensity 2,000cd ±25%

Ambient

temperature

-40℃~+60℃
IP rate IP65
Net Weight 3.0kg
Material Base:Die casting aluminum, housing: PC





Dimension Drawing



Medium - intensity Type B Aviation Obstruction Light  Flashing 20 - 60 FPM Red Color 0

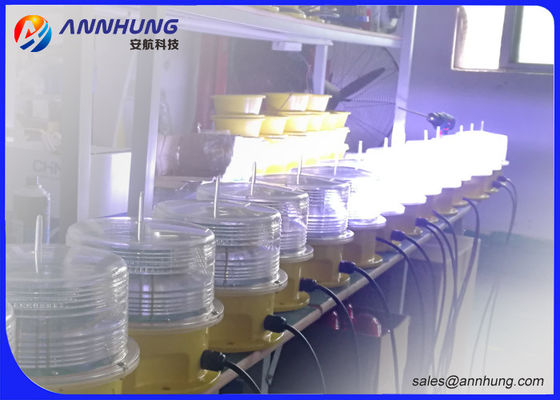

Product Picture



Medium - intensity Type B Aviation Obstruction Light  Flashing 20 - 60 FPM Red Color 1





Medium - intensity Type B Aviation Obstruction Light  Flashing 20 - 60 FPM Red Color 2
