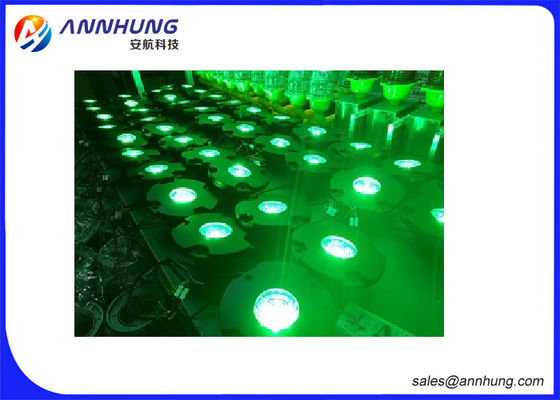

LED Inset Helipad Landing Lights / Heliport Lighting FATO TLOF Light NVG IR LED 850nm
Touchdown and lift-off area light emitting green steady burning light at night or in the daytime with poor visibility to provide good visibility. It shall be placed along the edge of the area designated for use as the Touchdown and lift-off area or within a distance of 1.5 m from the edge.
Aiming point lights shall be collocated with the aiming point marking. It always emitting white steady burning light.
Inset light is always be used at locations where the lights are frequently knocked down by aircraft or maintenance vehicles.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.7, 5.3.8
FAA AC 150/5390-2B Heliport Design Guide
CAP437 (Offshore helipad)
Features
Electrical
LED light source power saving consumption and maintenance working mode, 95% less power than equivalent incandescent light
Power supply available In 120VAC, 220VAC, 48VDC, 24VDC
Physical
Pressure resistance lens allowed the vehicles go through on light
Die-casting aluminum covered by blace hard anodizing layer have good corrosion protection and load bearing
IP68 waterproof ensure light work fine underground
Optional
Infrared LED for pilot using NVG
Controller for power supplying and turn ON/OFF light
Specifications
| SPECIFICATIONS | AH-HP/A Touchdown and lift-off Area Inset Light |
| Light Characteristics | |
| Light Source | Ultra high intensity LED |
| Available Colors | Green, White, Blue, |
| Intensity(cd) | ≥100cd |
| Flash Characteristics | Steady burning |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 120VAC, 220VAC, 48VDC, 24VDC or others |
| Power(W) | 8 |
| Physical Characteristics | |
| Body Material | Anodized Die-casting aluminum |
| Base Material | Painted aluminum |
| Overall size(mm) | 194×194×138 |
| Installation size(mm) | 199×199×146 |
| Weight(kg) | 4.9 |
| Product Life Expectancy |
Average 5 years |
| Environmental Factors | |
|
Ambient Temperature(℃) -55℃~+70℃ |
-55~70 |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Compliance | |
| ICAO | ICAO Annex 14 Volume ǁ Heliports 5.3.7, 5.3.8 |
| Options Available | Infrared LED compatitble for NVG (Night |
| Vision Goggles) | |
| Marine Treated | |
| Anodized color |
Dimension Drawing
Packaging & Delivery
Packaging: Paper carton 1 piece/box.
Delivery: In 2-10 days after payment.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
