Product Description

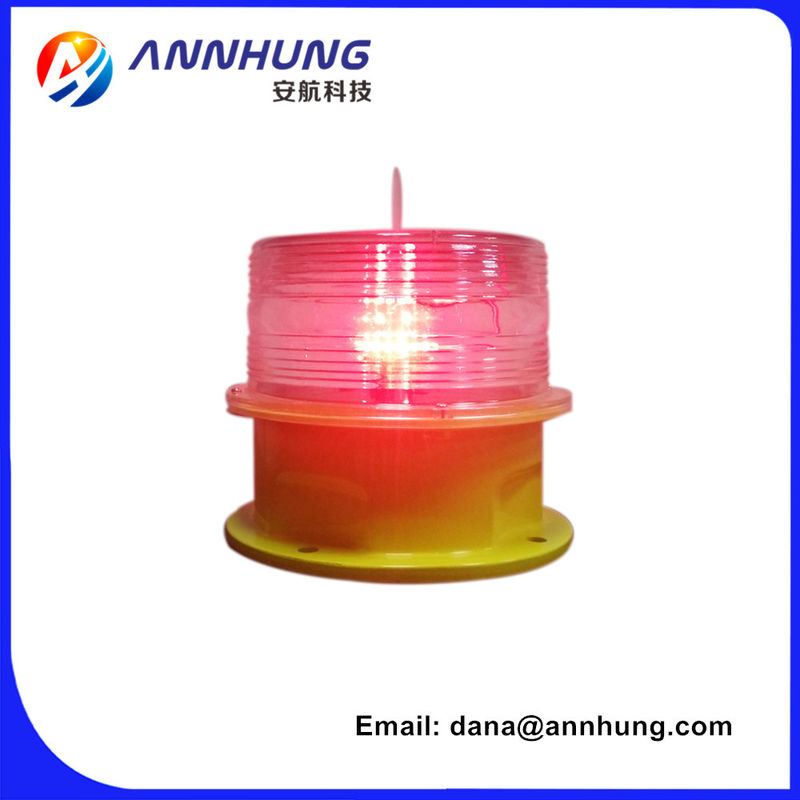

LED Low-intensity Solar Powered Aviation Obstruction light
This LED 32cd Solar Powered Aviation Obstruction light is adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply. Improve lights working time.
Solar panel as sensor ensure LED only working at night and closed in the daytime automatically. It is designed for marking top of obstacle that do not exceed 45 meters in height. More protect your buildings.
Compliance
ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Low Intensity Type A / B Obstruction Light
FAA L-810
Electrical
LED as light source, life experience >100,000hours, Meet your project requirements.
Physical
With bird needle to prevent bird drop
UV & vibrations protected polycarbonate lens for converging light
Powder coated die casting aluminum base, light fastness, resist snow and rain
Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
System design
Solar panel as sensor(Photo diode) for day & night working mode(dusk to dawn mode)
ON/OFF button make local control easy
Flashing(20fpm)/steady toggle switch under base. These design make the lights work more convenient.
Optional
GSM cellphone monitoring
Infrared LED for pilot using NVG(Night Vision Goggles)
Remote control ON/OFF. Smarter function make you enjoy better.
Application
AH-LS-B solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where
there is no cable power supply and those facilities which have high requirements on lightning protection.
Used alone on the top of obstacle which height is less than 45meter. The emitting color and flash chatacteristics could be customized.
More detailed parameter:
| Light Source |
LED |
| Emmiting color |
Red |
| Intensity |
32cd |
| Flash Characteristics |
Steady/Flashing(20fpm) adjustable
|
| Operation mode |
Dask to dawn operation |
| Solar Module Type |
Mono crystalline Silicon |
| Battery type |
Lithium ion battery |
| Base Material |
Powder-coated Die-casting aluminum |
| Mounting |
120*220*133 |
| Product Life Expectancy |
Average 5 years |
| Autonomy (hours) |
Steady:60, Flashing:120 |
More product imagine:
