L810 10cd Solar Aviation Obstruction Light GPS Sync Flashing aluminum base

Minimum Order Quantity : 1 Packaging Details : Carton
Delivery Time : 7-15work days Payment Terms : T/T, Western Union, D/P
Place of Origin: China Brand Name: Annhung
Certification: CE, RoHS,ICAO Model Number: AH-LS-L

Detail Information

Name: Solar Aviation Obstruction Light Light Source: LED
Color: Red Intensity(cd): >10cd(>32.5cd Is Optional)
Solar Module Type: Mono Crystalline Silicon Charging Regulation: Microprocessor Controlled
High Light:

10cd Solar Aviation Obstruction Light

,

Aluminum Base Solar Aviation Obstruction Light

,

GPS Sync Flashing LED Obstruction Light

Product Description

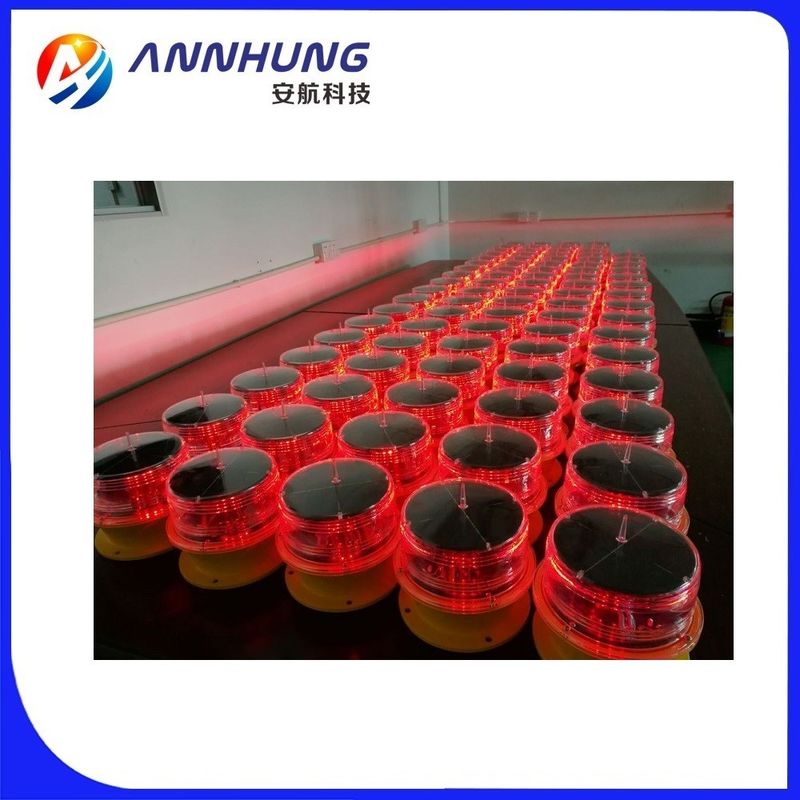

LED Low-intensity L810 Solar Aviation Obstruction Light GPS sync flashing


This LED Low-intensity Solar Powered Aviation Obstruction light is adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply. Built-in photocell ensure LED only working at night and closed in the daytime automatically.

Compliance

CAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B / E Obstruction Light
FAA L-810

Features

Electrical

LED as light source, life experience >100,000hours Physical
With bird needle to prevent bird drop
UV & vibrations protected polycarbonate lens for converging light
Powder coated die casting aluminum base, light fastness, resist snow and rain, salt atmosphere
Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon

System design

Built-in photocell (Photo diode) for day & night working mode (dusk to dawn mode)
ON/OFF button make local control easy

Optional

Infrared LED for pilot using NVG(Night Vision Goggles)
GPS sync flashing

Application

AH-LS-L solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.
Used alone on the top of obstacle which height is less than 45meter

DescriptionParameter
Light Source
LED
Emitting Color
Red
Intensity(cd)
>10cd(>32.5cd is optional)
Horizontal Output(degrees)
360
Vertical Divergence(degrees)
≥10
Flash Characteristics
20fpm(steady/other flashing rate is customized)
Operation Mode
Dusk-to-Dawn operation
LED Life Experience(hours)
>100,000
Operating Voltage
3.7
Circuit Protection
Integrated
Battery type
Lithium ion battery
Lamb Body Material
UV protected Polycarbonate
Base Material
Powder-coated Die-casting aluminum
Waterproof
IP68





Company Information


Anhang Technology (HK) Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc.

All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). We are proud to have served customers from all across the world.
