3W 20FPM 2000cd LED Aviation Obstruction Light ICAO

Minimum Order Quantity : 1 Price : 370usd/pc - 620usd/pc
Packaging Details : Packaging Details:136 by 136 by 220 paper carton 1 piece/box Delivery Time : 3-15days depends on quantity
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 1000pieces for one month
Place of Origin: Guangdong, China Brand Name: ANNHUNG
Certification: ICAO, CE, IS09001, IP Model Number: AH-MI-B2

Detail Information

Light Source: CREE High Intensity LED - Light Emitting Diode Emitting Color: Red
Light Intensity (cd): ≥20000 Candela Horizontal Output ( Degree )): 360°
Vertical Divergence ( Degrees ): Flash Rate: 20-60 Flashes Per Minute
Operation Mode: Built-in Photocell For Day/night Opearation LED Life Experience(hours): >100,000hours
Operating Voltage: DC(12V, 36V, 48V) Or AC(110-240VAC) Power(W): 3W (20FPM)
Body Material: Polycarbonate Base Material: Die-casting Aluminum
Weight(kg): 2.5KG Product Life Expectancy: ≥5years
Waterproof: IP66 Wind Speed: 240Km/h
High Light:

2000cd LED Aviation Obstruction Light

,

3W LED Aviation Obstruction Light

,

ICAO Tower Chimney Warning Light

Product Description

LED Aviation Obstruction Light 2000cd Red Flashing medium intensity Light ICAO certificed tower chimney warning light


This LED Medium-intensity Type B L864 Aviation Obstruction Light flashing red color, designed for marking top of obstacle which height is more than 45meters.



Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance. Self-designed reflector is used to converge light, which could reach the standard light intensity with as less as the power consumption.



Compliance of LED Aviation Obstruction Light

ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type B Obstruction Light

FAA L-864

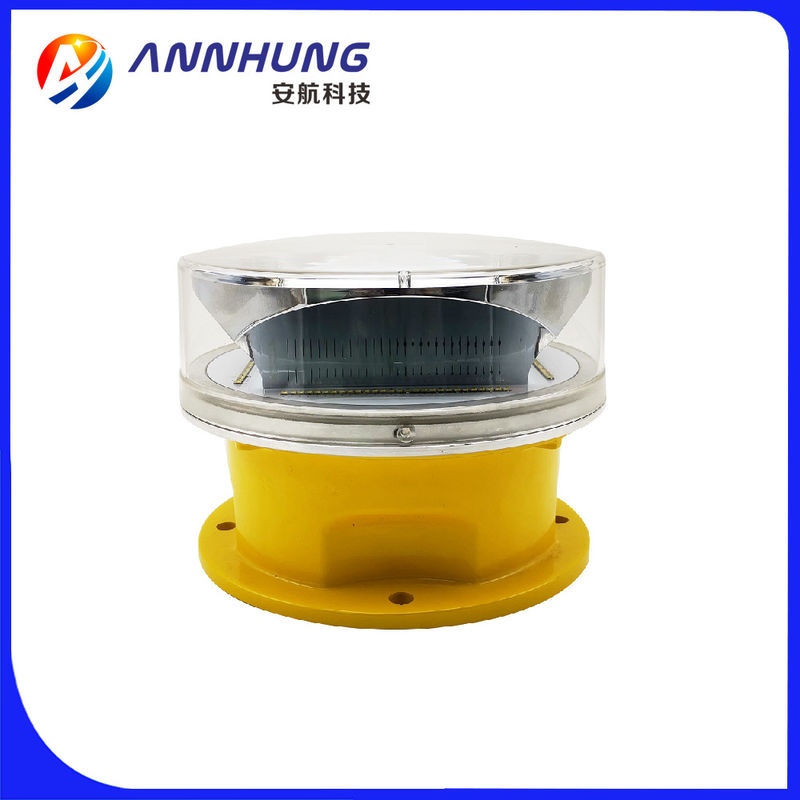

3W 20FPM 2000cd LED Aviation Obstruction Light ICAO 0



Features of LED Aviation Obstruction Light



Electrical

CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp

Power supply available in DC(12V, 24V, 48V) or AC(110-240VAC)

Physical

Unique design and UV protected polycarbonate reflector for converging light

UV protection Powder coated bright yellow color base make better visibilit

Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protectiol Special valve installed beside the base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high



System design

Built-in photocell for day/night operation(dusk to dawn operation)

Surge and lightning protection



Optional

Dry contact Alarm output for remote monitoring

User adjustable flashing rate(20, 30, 40, 60 flashes/minute)

GPS synchronization



Application of LED Aviation Obstruction Light

AH-MI-B2 medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 45-105meter, and most time work with low intensity lights installed on the lower place.

3W 20FPM 2000cd LED Aviation Obstruction Light ICAO 1



Main Parameter of LED Aviation Obstruction Light



SPECIFICATIONS AH-MI-B2 LED Medium-intensity Type B L864 Aviation Obstruction Light
Light Characteristics
Light Source CREE high intensity LED
Available Colors Red(Other color is optional)
Intensity(cd) ≥2000cd
Horizontal Output (degrees) 360
Vertical Divergence (degrees) 3
Flash Characteristics 20-60 flashes per minute(factory setting: 20fpm)
Operation Mode Dusk-to-dawn Automatically as standard.
LED Life Experience (hours) >100,000
Electrical Characteristics
Operating Voltage DC(12V, 48VDC) or AC(110-240VAC) or others
Instantaneous power(W) 40
Average Power(W) 3W(20fpm)
Lightning surge

IEC61000-4-5 L- N ±3kV

IEC61000-4-5 L- PE ±6kV

IEC61000-4-5 N- PE ±6kV



Electrostatic IEC61000-4-2 Contact discharge 8kV
Circuit Protection Integrated
Physical Characteristics
Body Material UV protected Polycarbonate
Base Material Powder-coated Die-casting aluminum
Mounting 190×190×θ12
Dimension(mm) 229×229×168
Weight(kg)

2.5



Product Life Expectancy 5 years Plus
Environmental Factors

Ambient Temperature(℃)



-40~55
Storage temperature(℃) -55~70
Humidity 10%-95%RH(No condensation)
Wind Speed 240Km/h
Waterproof IP66
Compliance
ICAO Annex 14 Volume 1,'Aerodrome Design and
  Operations’ Seventh edition 2016, table 6.3
  Medium-intensity Type B Red Obstacle Light
FAA L-864
Options Available
  Flashing rate
  NVG(Night Vision Goggles) compatible LED
  Dry contact alarm(NO COM NC)
  GPS sync flashing
  RS485 communication
  Bird deterrent spike



Function of LED Aviation Obstruction Light


This is Single light with Photocell. It can work automatically all day by photocell. This light can change intensity automatically .During the day, the LED Aviation Obstruction Light will turn off, when night come, the LED Aviation Obstruction Light will turn ON automatically.


Product picture




 3W 20FPM 2000cd LED Aviation Obstruction Light ICAO 2




Company Information


Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of airport lighting, aircraft warning light, helipad lighting, solar airfield light. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc.



All airport lighting, aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc.



Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.



AH-MI-B2 LED Aviation Obstruction Light datasheet download: download AH-MI-B2 LED Medium-intensity Type B L864...
